BIG ASS FANS Basic^ - Attach Upper Yoke (to I-Beam)

12’–24’ BASIC6
™
WWW.BIGASSFANS.COM ©2012 DELTA T CORP. DBA BIG ASS FAN ALL RIGHTS RESERVED
12
1RWH(QVXUHWKHVSDFHUVDUHRULHQWHGDVVKRZQ6SDFHUVDUHRQO\XVHGLIWKHEHDPÀDQJHH[FHHGV´FP
Mounting Structure: I-Beam (cont.)

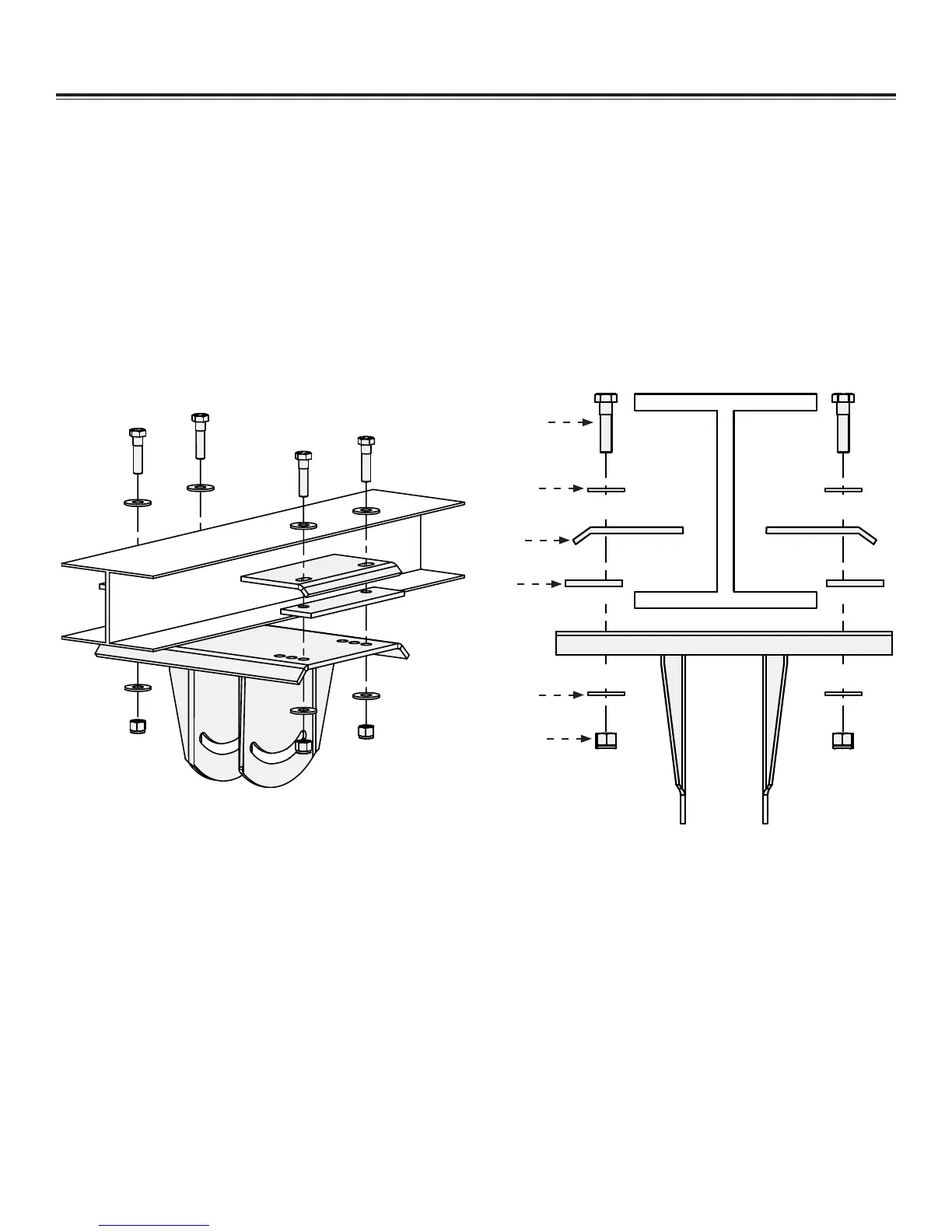

2. Attach upper yoke (to I-beam)
Secure the upper yoke to the I-beam with the Beam Clip Hardware as shown. Tighten the bolts to 40 ft·lb (54.2 N·m) using a torque
wrench and 3/4” socket.
Upper Yoke Hardware (BAF-Supplied):
a. (4) 1/2-13 x 2” GR 8 Bolt
b. (8) 1/2’’ Flat Washer
c. (4) 1/2-13 Nylock Nut
d. (2) Beam Clip
e. (2) Spacer
3URFHHGWR³+DQJLQJWKH)DQ´S
Side View
b
a
c
b
e
d
