12’–24’ BASIC6
™
Installing the Electronic Programming Module (EPM)
WARNING: Install the EPM prior to applying power to the fan controller!
AVERTISSEMENT : Installer les MPE avant la mise sous tension du ventilateur.
7KH(30FRQWDLQVDOOSURJUDPPLQJLQIRUPDWLRQVSHFL¿FWRIDQRSHUDWLRQ,Wmust be installed prior to applying power to the fan controller.
This module is provided as part of the fan’s accessory kit.

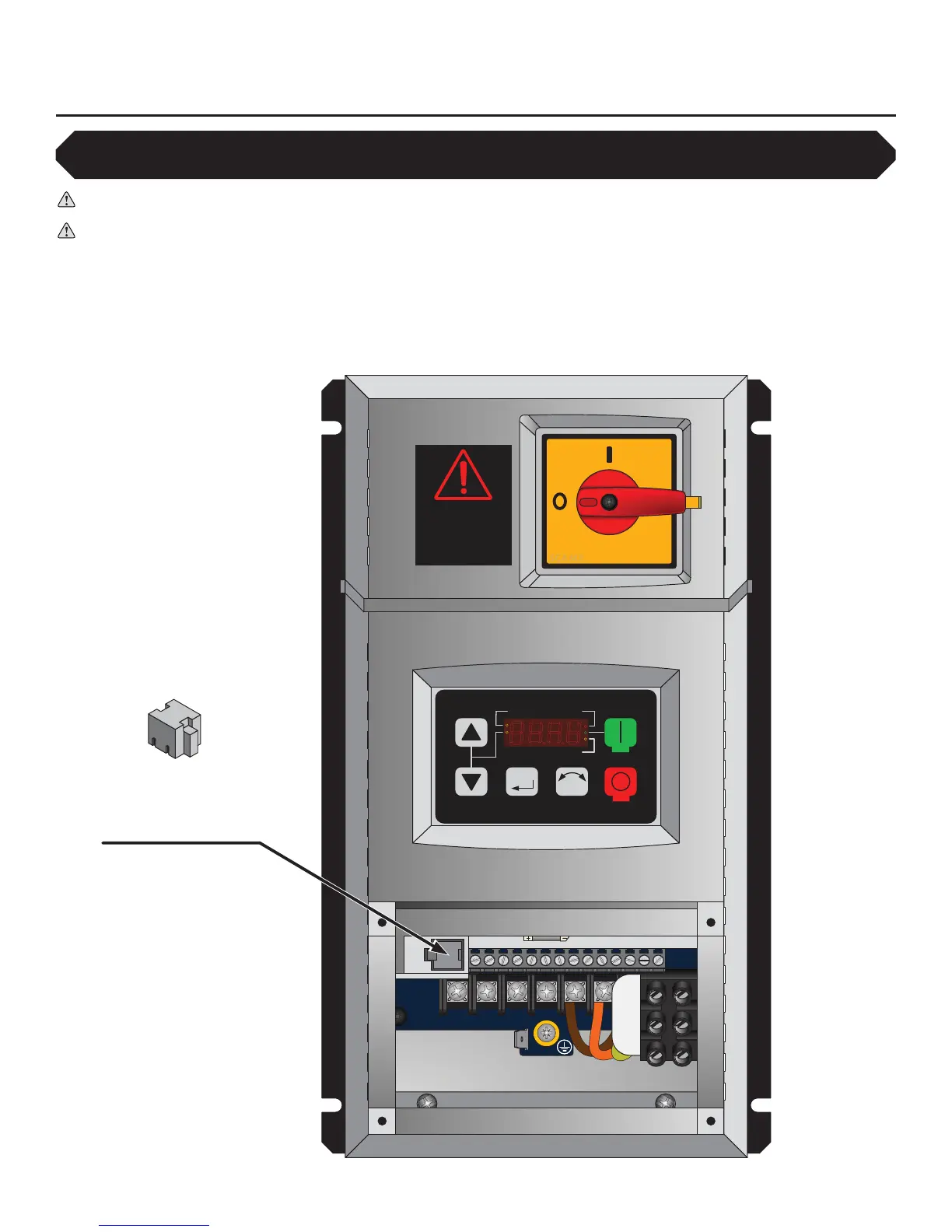

To install the EPM, disconnect the fan from power (refer to the position of the disconnect switch below). Insert the EPM in the location
shown below. Note: The EPM module can only be inserted one way. Do not force it!
Electrical Installation (cont.)
U/T1 V/T2 W/T3
PE
L1 L2 L3
L1
L2
L3
1256 13A13B13C1430161725 4 11
1 2 5 6 13A 13B 13C 1 4 3 0 1 6 1 725 4 11
SC A M E
SC A M E
M
RF
RUN
STOP
AUTO FWD
REV
WARNING
DO NOT USE THIS
DISCONNECT TO
START AND STOP THE
FAN. PERMANENT
DAMAGE WILL
RESULT!
Electronic
Programming
Module
If hanging multiple fans, ensure to install the exact EPM included in each fan’s packaging. EPMs are not
interchangeable!
