WWW.BIGASSFANS.COM ©2012 DELTA T CORP. DBA BIG ASS FAN ALL RIGHTS RESERVED
12’–24’ BASIC6
™
Hanging the Fan

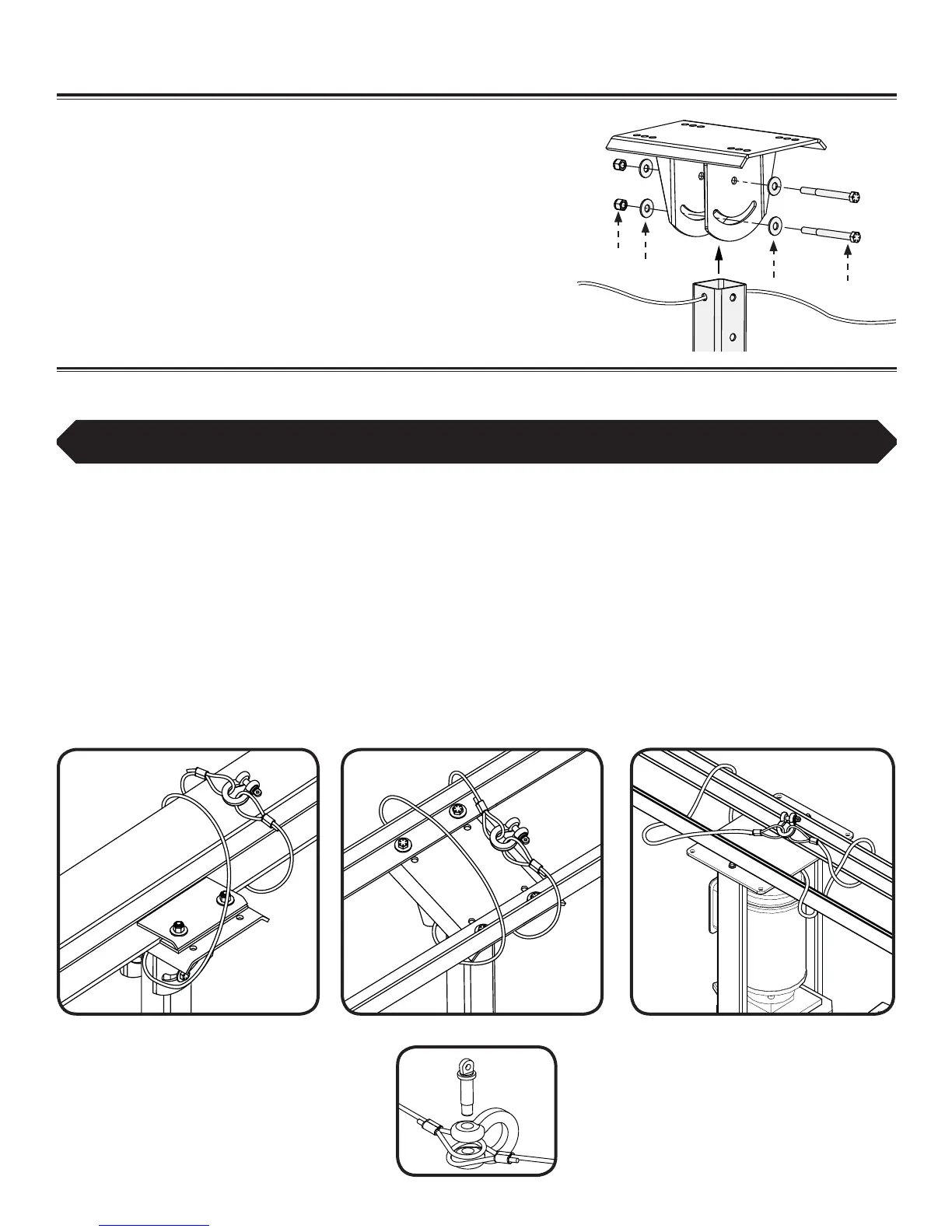

1. Attach extension tube (to upper yoke)
Fasten the extension tube to the upper yoke with the Extension Tube
Hardware as shown. Ensure the extension tube is hanging plumb to the
ground, and then tighten the hardware so that it is snug, but not fully
tightened.
Note: If the mounting structure requires a non-standard length of
H[WHQVLRQWXEHVHH³&XWWLQJWKH([WHQVLRQ7XEH´RQSDJH
Extension Tube Hardware (BAF-Supplied):
a. (2) 1/2-13 x 4-1/2” GR 8 Bolt
b. (4) 1/2’’ Flat Washer
c. (2) 1/2-13 Nylock Nut
2. Secure safety cable
Note: If your fan installation includes an extension tube, the safety cable is already attached to the extension tube. If you are mounting
the fan without an extension tube, the safety cable is packed separately.
Shackle
I-Beam mount
Secure the safety cable by wrapping it
around the I-beam and connecting the
looped ends with the shackle as shown.
The cable must be drawn tightly around
the I-beam, leaving as little slack as
possible. If possible, the shackle should
be on the topside of the I-beam. Securely
tighten the shackle.
Proceed to step 3.
Angle iron mount
(with extension tube)
Secure the safety cable by wrapping it
around the angle irons and connecting the
looped ends with the shackle as shown.
The cable must be drawn tightly around
the angle irons, leaving as little slack as
possible. The shackle should be on the
topside of the angle irons if possible.
Securely tighten the shackle.
Proceed to step 3.
Angle iron mount
(no extension tube)
Route the cable through the motor frame
and around the angle irons as shown.
Connect the looped ends of the cable with
the shackle. The cable must be drawn
tightly around the angle irons, leaving
as little slack as possible. The shackle
should be on the topside of the angle iron
if possible. Securely tighten the shackle.
The safety cable is a crucial part of the fan and must be installed correctly. If you have questions, call Customer
Service at 1-877-BIG-FANS for assistance.
b
a
c
b
To Next Page
