12’–24’ BASIC6
™
WWW.BIGASSFANS.COM ©2012 DELTA T CORP. DBA BIG ASS FAN ALL RIGHTS RESERVED
36
Operating the fan controller
WARNING: The following startup procedures apply to standard model controllers. Procedures may vary depending on
installation options and system automation. The installer should verify proper wiring, terminations, and proper voltage
VXSSO\EHIRUHSURFHHGLQJ+LJKYROWDJHJORYHVDQGDUFÀDVKSURWHFWLRQDUHUHFRPPHQGHG
AVERTISSEMENT : Les procédures de démarrage suivantes s’appliquent aux régulateurs des modèles standard. Elles
SHXYHQWYDULHUHQIRQFWLRQGHVRSWLRQVG¶LQVWDOODWLRQHWGHO¶DXWRPDWLVDWLRQ/¶LQVWDOODWHXUGRLWYpUL¿HUOHFkEODJHOHV
raccordements et la tension d’alimentation avant de procéder. Le port de gants pour haute tension et d’une protection
contre les étincelles d’arc est recommandé
Electrical Installation (cont.)
M
RF
RUN
STOP
AUTO FWD
REV
M
RF
RUN
STOP
AUTO FWD
REV
RUN
STOP
M
RF
then
M
RF
RUN
STOP
AUTO FWD
REV

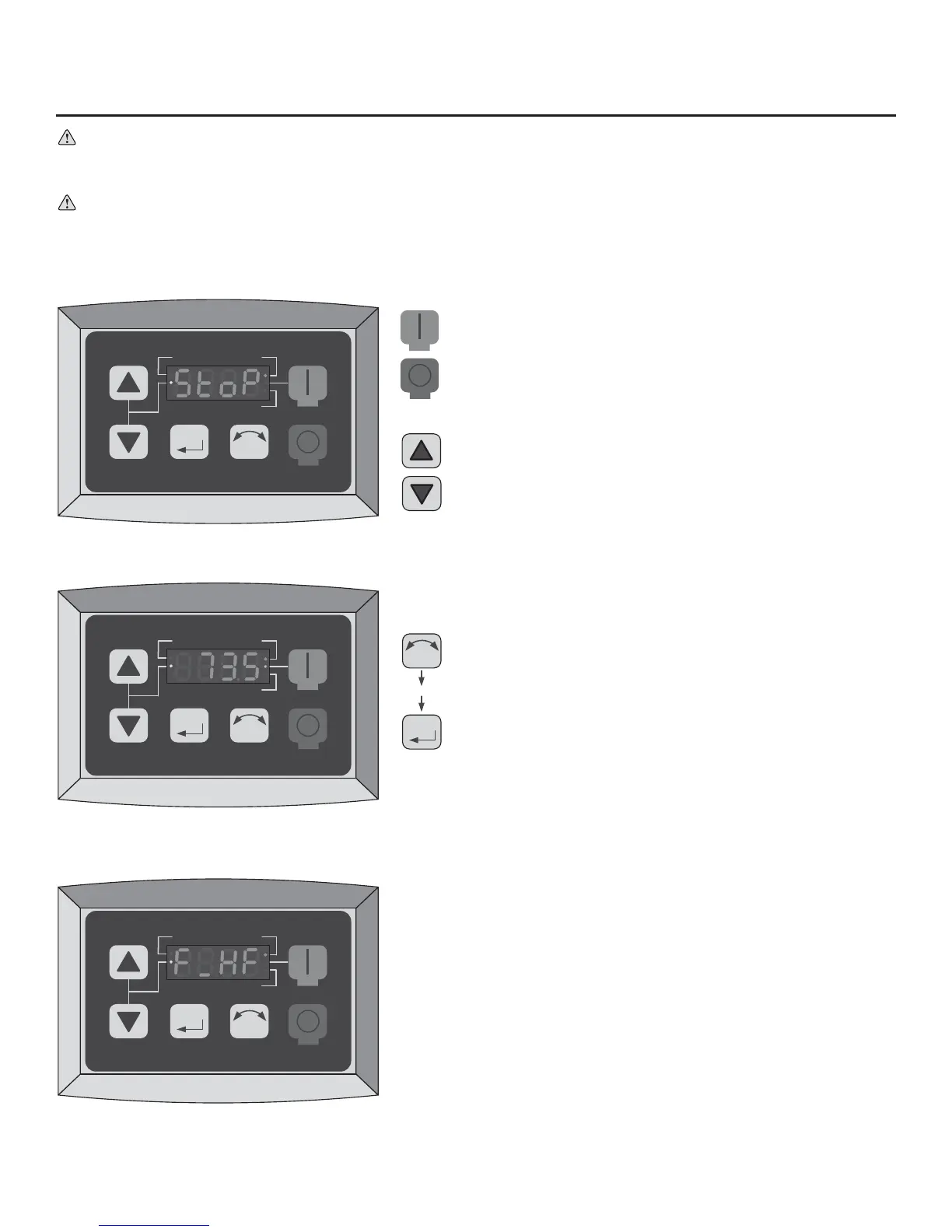

Drive Idle/Stopped Screen
Fan Speed Percentage Display
(73.5% running FWD)
Typical Fault Message Display
(Incoming Line Over-Voltage shown)
Starting and stopping the fan
The RUN and STOP buttons control the fan start and stop
functions. To start the fan, press the green RUN button. To stop
the fan, press the red STOP button.
Adjusting fan speed
The Arrow buttons control speed adjustment. To adjust fan speed,
press the Up or Down Arrow button. Single presses will increase or
decrease the speed in 1-2% increments. Pressing and holding the
Up or Down Arrow button will slowly and continuously adjust fan
speed until the button is released.
Reversing direction of fan rotation
The direction of fan rotation can be reversed when the fan is
stopped or running. To reverse the direction of rotation, press the
Direction button, and then press the Memory/Enter button (as
VKRZQRQWKHOHIW7KHDVVRFLDWHG'LUHFWLRQLQGLFDWRUZLOOÀDVK
indicating the pending change.
