Review the diagnostics below before contacting Customer Service for support.

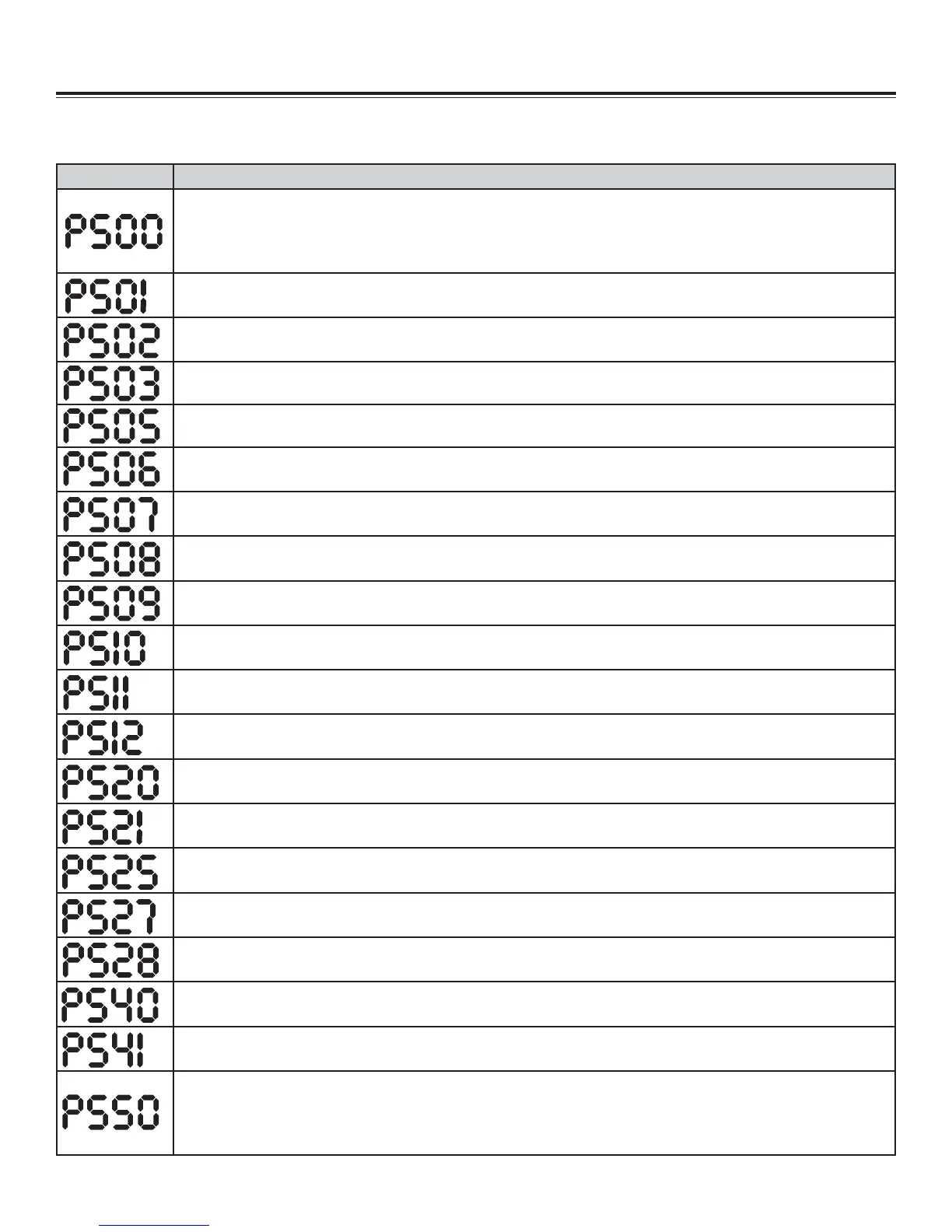

Setting Run screen display
Fault History
Q[[[
N = 1–8
xxx = Fault code
Software Version
Drive ID
Internal Code (x.yz)
DC Buss Voltage
GLYLGHGE\ DSSUR[LPDWHOLQHLQSXWYROWDJH
RMS Equivalent Motor Voltage at Drive Output Terminals
Motor Load
RIGULYHRXWSXWUDWLQJ
Actual Motor Current in Amperes
Torque as a Percentage of Motor Rated Torque
YHFWRUPRGHRQO\
Drive Output Power in kW
Total kWH for Drive Lifetime
Heatsink Temperature Degrees Celsius
0–10VDC Input Voltage (VDC)
4–20mA Input Current (mA)
Analog Output Level (VDC)
Actual Drive Output Frequency (Hz)
Network Speed Command (Hz)
Total Runtime (hours)
Total Powered-On Time (hours)
Fault History
Q[[[
N = 1–8
xxx = Fault code
