BIGTREETECH Pi 2 User Manual
24
5.4. Configuring the Display

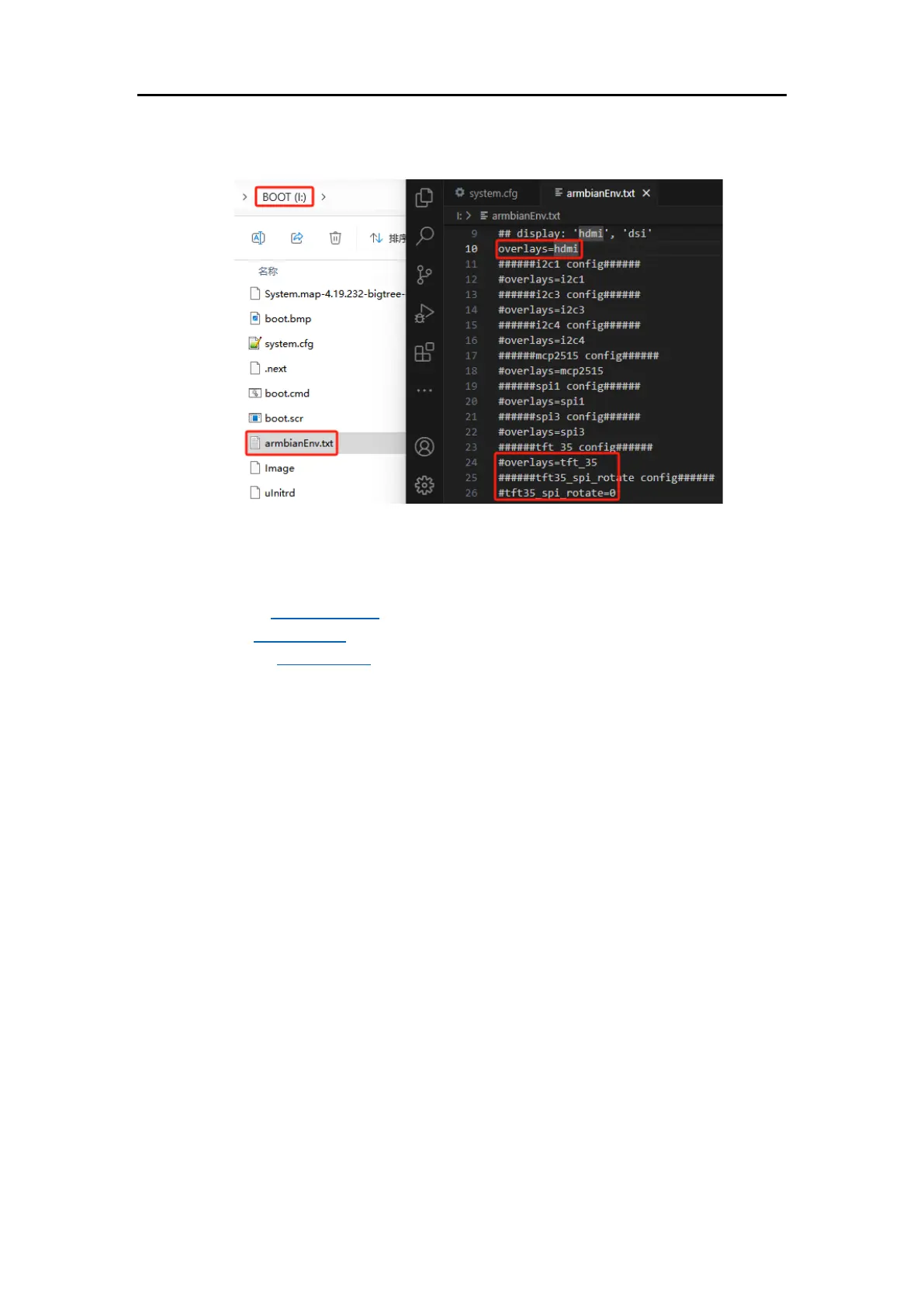

1. Open the "armbianEnv.txt" file in the BOOT partition.
2. The default overlay is set to "hdmi," meaning the system uses an HDMI
screen by default. This can be changed to match the actual screen being
used, such as:
"hdmi": HDMI screen
"dsi": DSI screen
"tft_35": SPI Screen
For "tft_35", there is also a "tft35_spi_rotate" parameter for system-level
screen rotation, with default "0" meaning no rotation, other options include
"90", "180", "270".
Note: Only one screen type can be used at a time.
3. To configure KlipperScreen, open the `system.cfg` file in the BOOT
partition. Set the screen type with the parameter `ks_src`, and the rotation
angle with `ks_angle`.
