C 150 (E2) 06/2011 page 16/78
2.3 Connection panel at the rear of the unit
(11) (12) (13) (14) (15)

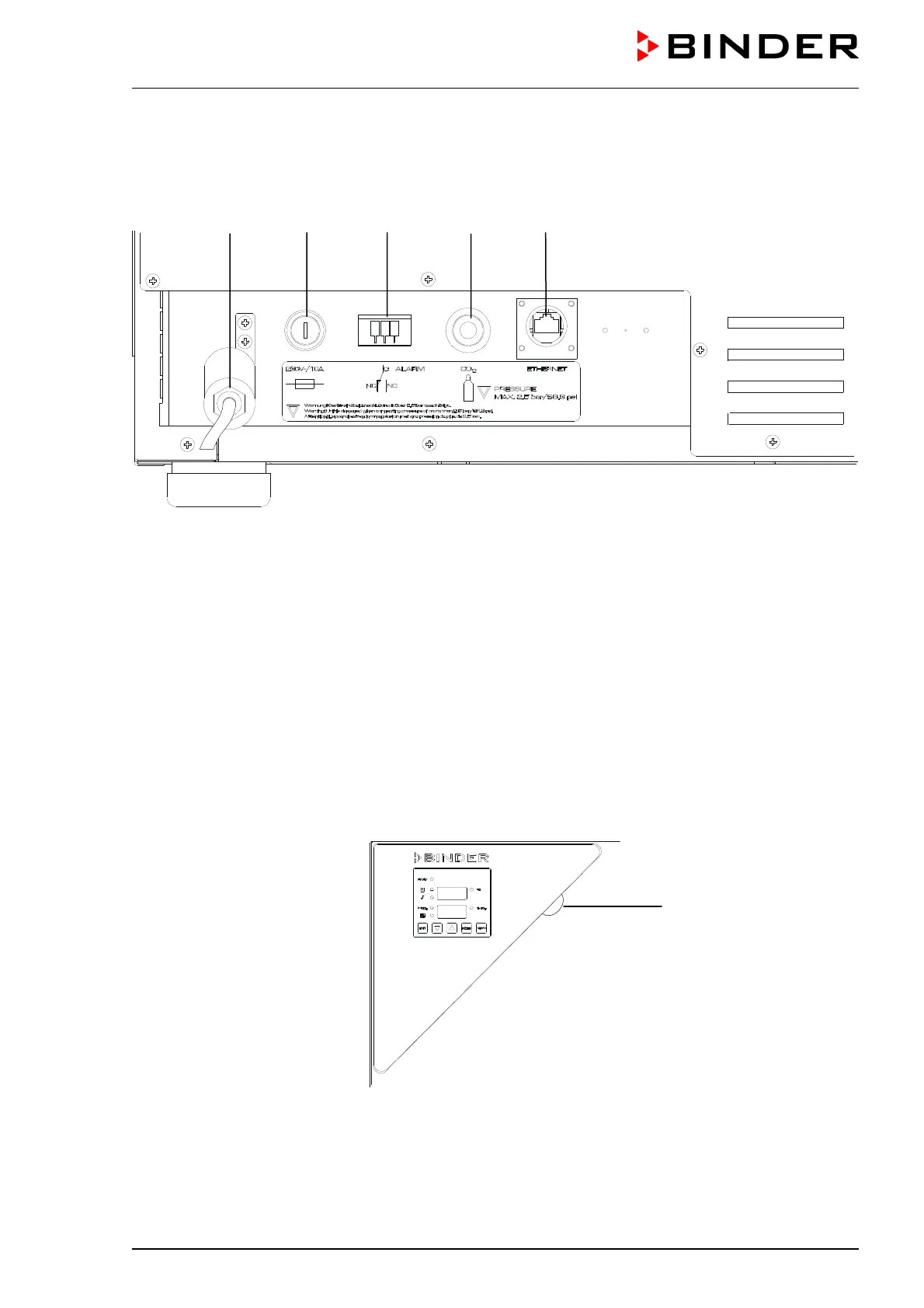

Figure 8: Rear connection panel C 150
(11) Power cable
(12) Miniature fuse
(13) Connection socket for zero-voltage relay alarm contact
(14) Quick acting closure socket for CO
2
gas bottle
(15) Ethernet interface for computer communication (option)
2.4 Triangle instrument panel C 150
Figure 9: Triangle instrument panel with RP1 controller
(2) Main power switch with protruding plastic shield (protection against turning off unintentionally)
(2)
