CB-S / CB-S-UL (E7) 06/2020 page 22/119
2.3 Connection panel on the rear of the chamber
(13) (14) (15) (18)
(12a) (16a) (16a) (17)

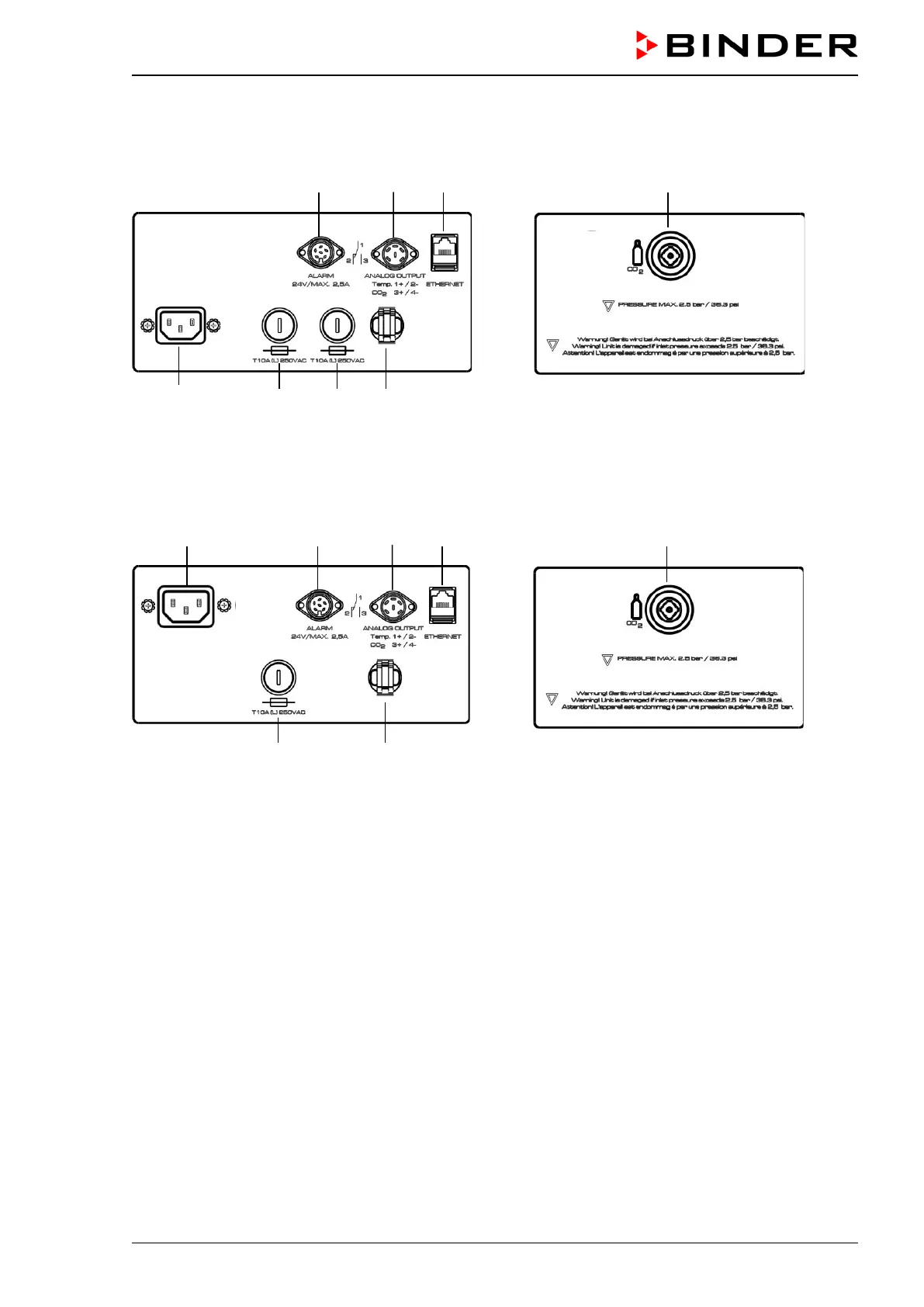

Figure 7: Rear control panel C with options
(12b) (13) (14) (15) (18)
(16b) (17)
Figure 8: Rear control panel C-UL with options
(12a) Socket for IEC connector plug / power cable 230 V AC for C
(12b) Socket for IEC connector plug / power cable 100-120 V AC for C-UL
(13) DIN-socket for zero-voltage relay alarm outputs
(14) DIN socket for analog outputs 4-20 mA (available by BINDER INDIVUDUAL Customized Solutions)
(15) Ethernet interface for computer communication
(16a) Miniature fuse T10 A (L) 250 V AC for C
(16b) Miniature fuse T12,5 A (L) 250 V AV for C-UL
(17) Strain relief for power cable
(18) Quick acting closure socket for CO
2
