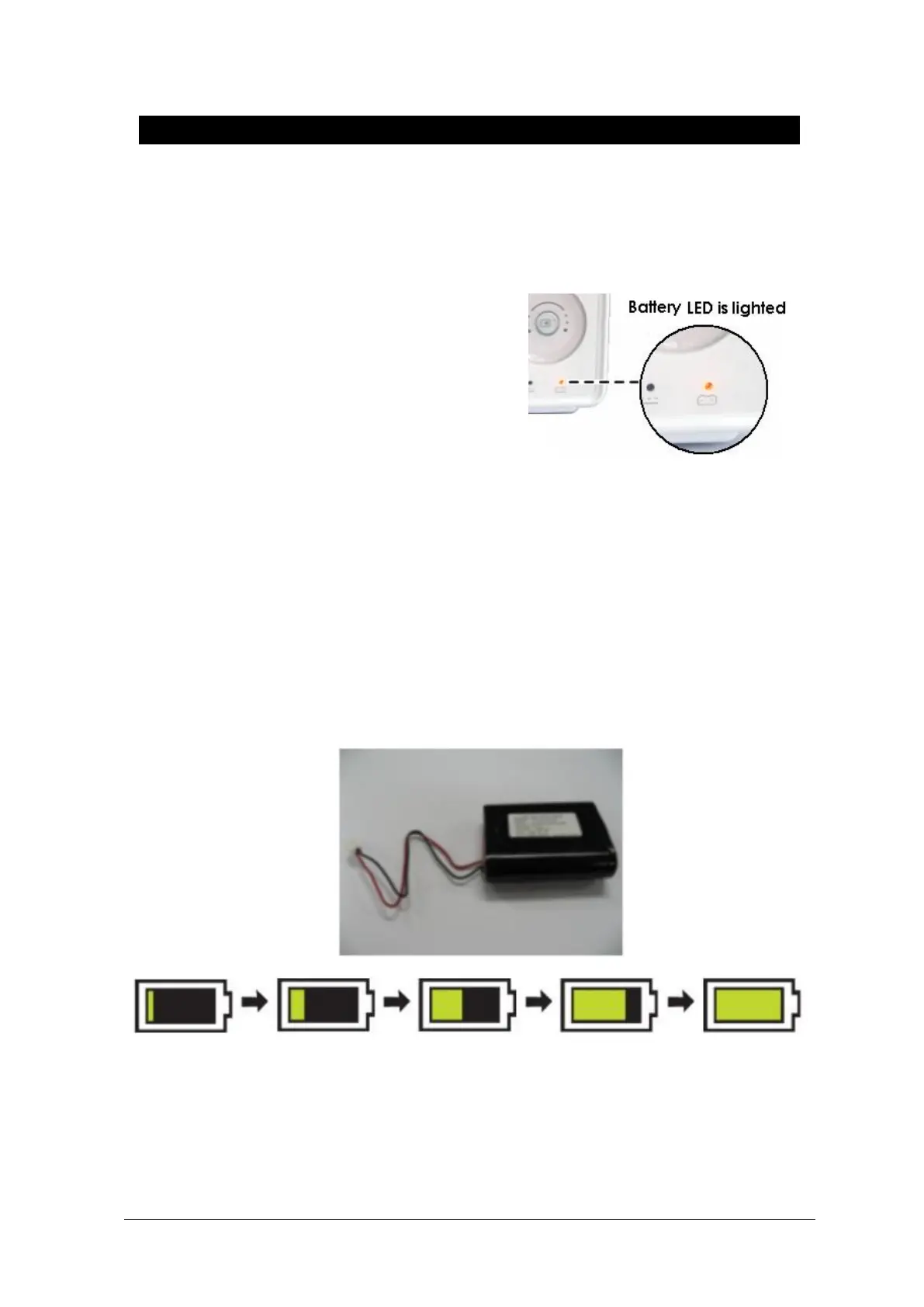

1.6 Battery Power Supply Application
Battery power can be supplied for enabling a portable use or for use during DC power failure.
Operation
1. Battery Power LED is lighted on when the machine is
in use.
2. The DC/battery power is only sustainable for 4.5 hour.
3. Battery is automatically charged when the machine is connected to DC Power Supply. Battery
LED is lighted on after blinking.
4. The charging status of the batteries is displayed with 5 green boxes, each indicating a different
charging
. ( 0% -> 25% -> 50% -> 75% -> 100%)
Battery: SDI1865L2203S1PMXZ(10.8V - 2200mA, Li-ion)
The Lithium-Ion battery is a rechargeable battery containing Lithium-Ion cells. Each battery
contains an integrated electronic fuel gauge and a safety protection circuit.
5. The discharge condition of battery is indicated with on of 5 yellow boxes, each box showing a
different level of charge available.
. (100% -> 75% -> 50% -> 25% -> 0%)
