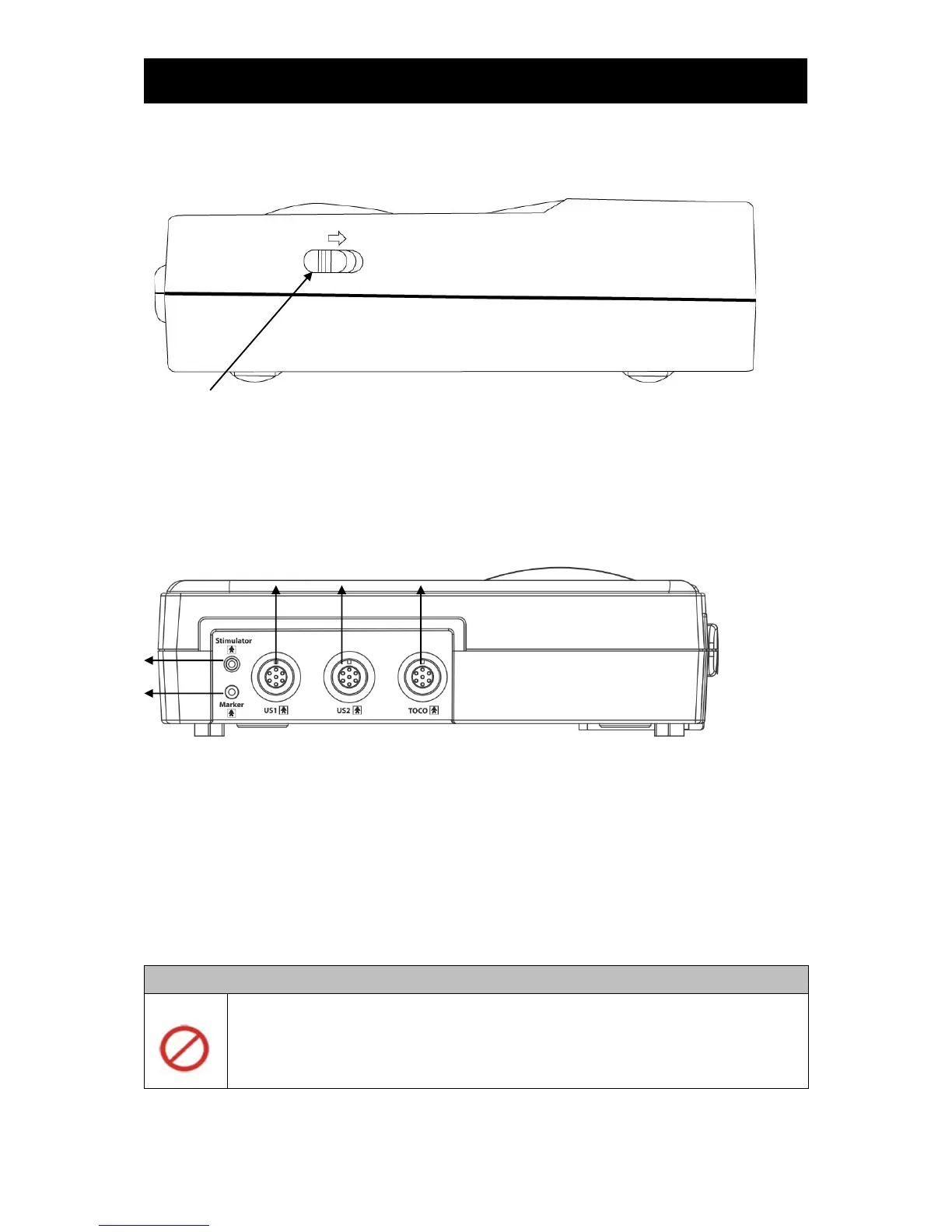

▣ Right side view
①Printer door release lever: Slide lever to open printer door
▣ Left side view
① Marker jack connection terminal: Terminal to which the marker jack cable is to be connected
② Stimulator jack connection terminal : Terminal to which the stimulator cable is to be connected.
③ US probe connection terminal 1: Connection terminal to which the US probe is to be connected
④ US probe connection terminal 2: Connection terminal to which the US probe is to be connected
when measuring twin fetus
⑤ TOCO probe connection terminal: Connection terminal to which the TOCO probe is to be
connected
Please instruct the operators to avoid contact with both the USB or LAN port area and
the patient simultaneously.
RISK OF ELECTRICAL SHOCKS – DO NOT OPEN THE DEVICE : Device
disassembly is only authorized to individuals with Bionet service authorization.
