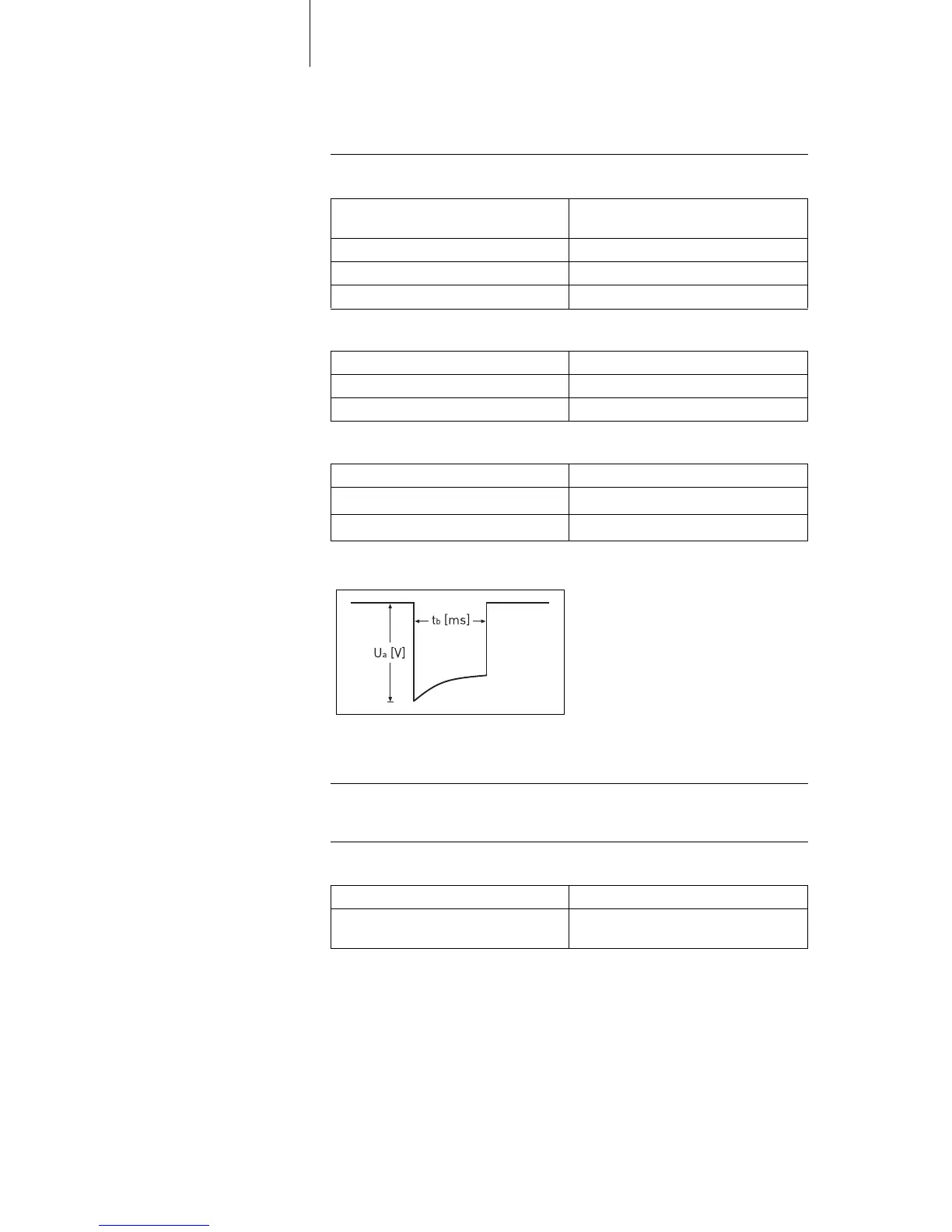

48 Technical Data
Electrical Characteristics
Components
and input values
Electrical characteristics determined at 37°C, 500 Ohm
Housing shape The implant housing has the following shape:
Electrically
conductive surface
The implant housing has the following surface:
Pulse form The pacing pulse has the following form:
The pulse amplitude reaches its maximum value at the beginning of the pulse (Ua).
With increasing pacing duration (tb), the pulse amplitude is reduced dependent on
the pacing impedance.
Resistance to interference All variants of BIOTRONIK implants comply with the requirements of
prEN 45502-2-2: 2006, Section 27.5.1 at the highest sensitivity.
Telemetry Telemetry data for Home Monitoring:
Circuit Hybrid electronics with VLSI-CMOS
chip
Input impedance > 10 kOhm
Pulse form Biphasic, asymmetric
Polarity Cathodic
Implant type DR(-T), SR(-T)
Uncoated Flattened ellipsoid
Coated Ellipse
Implant type DR(-T), SR(-T)
Uncoated [cm
2
]
33
Coated [cm
2
]
7
Nominal carrier frequency Maximum power of transmission
403.62 MHz < 25 μW
-16 dBm
