BP-007 User’s Manual
- 33 -
character line spacing
Input
Voltage: 100-240V AC
Frequency: 50Hz/60Hz
Power supply
Output
Voltage: 24V DC
Current: 2.5A
Temperature: 5 ~ 40℃
Operating
environment
Humidity: 20%RH ~ 80%RH (No condensation)
Temperature: -40 ~ 55℃
Environmental condition
Storage
environment
Humidity: ≤93%RH (40℃, No condensation)
Weight Approx. 2.1 kg (with auto-cutter)
Noise
＜58 dB (A) (ISO7779 standard)
Physical dimensions 156mm(Width) × 236mm(Depth) × 131mm(Height)
Power Operation power: 20W; Max. power: 48W; Standby power: 3.2 W.①②③
Note: Only when the product doesn’t connect any power supply, can it
consume zero energy.
300 dots per line (57.5±0.5mm paper width)
Horizontal
420 dots per line (76±0.5mm paper width)
Resolution
Vertical: 144DPI
Control panel 1 key and 3 indicator lights
Paper type Roll paper
Wireless disturb Grade B
Note: The Print head life and MCBF above are realized by using appointed printing paper and ribbon
cartridge in the environment appointed by BIRCH PRINTER.
5.2 Interface
This printer is equipped with one data interface (parallel interface, serial interface, USB interface, USB
interface + Ethernet interface, Bluetooth or USB interface + Wi-Fi) and one cash drawer interface.
Connect the computer with correct cables.
5.2.1 Cash Drawer Interface

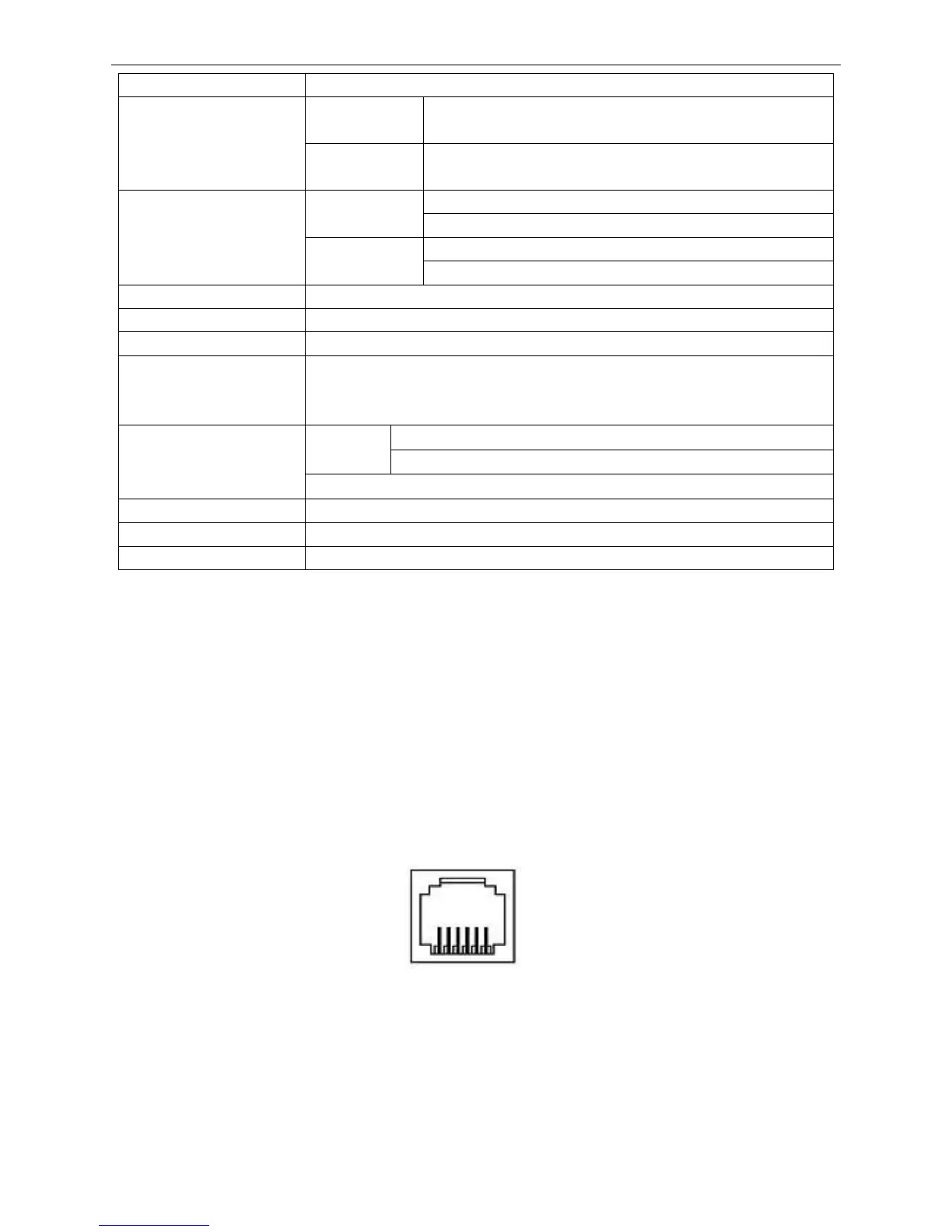

(1) The cash drawer interface is RJ-11 interface (6 lines), shown as below.
(2) Definition of pins
The definition of the cash drawer interface pins is shown as the Table below:
Figure 5-1 Cash drawer interface
6 1
