Digital Power Meter Model 5000-XT
18

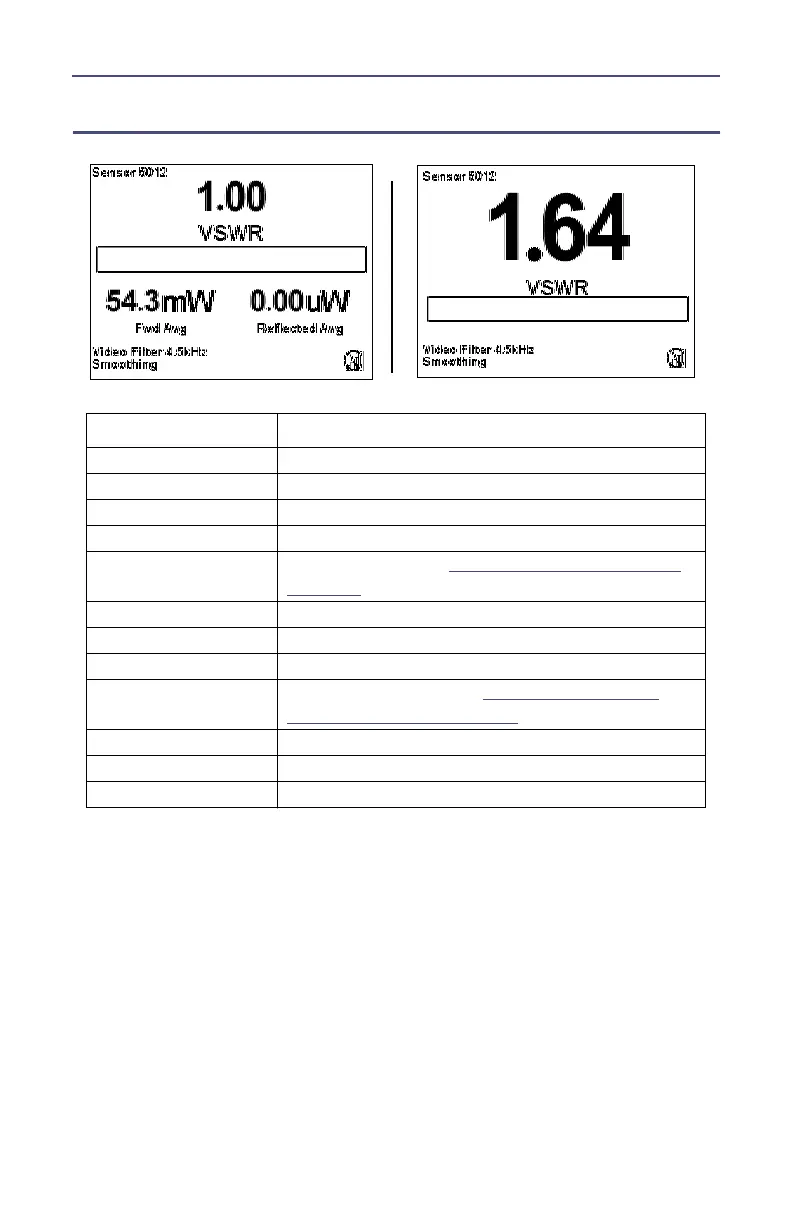

Match Interface
Note: The main measurement is in the larger display located
above the graph bar. The two smaller, secondary measurements
are located below the graph bar. All of these measurements vary
depending on the main measurement displayed.
Key Button Action
Right Arrow Changes the Main Measurement to Forward Peak
Left Arrow Changes the Main Measurement to Reflected Avg
Up Arrow Switch Match (VSWR, Rtn Loss, Match Eff%)
Down Arrow Switch Fwd/Rfl Avg (W, dBm)
OK Button
Initiates Shutdown.
See "Shutting Down" on
page 11
Menu Button Goes to Main Menu
Log Button Goes to Logging submenu
+/- Toggles between “Small” and “Large” Display
. (2 Sec)
Performs a screen shot.
See "Performing a
Screen Shot" on page 12
0 (2 Sec) Zero/Cal Unit/Sensor
8 (2 Sec) Turn On/Off Smoothing (*for Fwd/Rfl Power)
Menu & Log (2 sec) Language Selection Screen
Small Display
Large Display
