Digital Power Meter Model 5000-XT
36

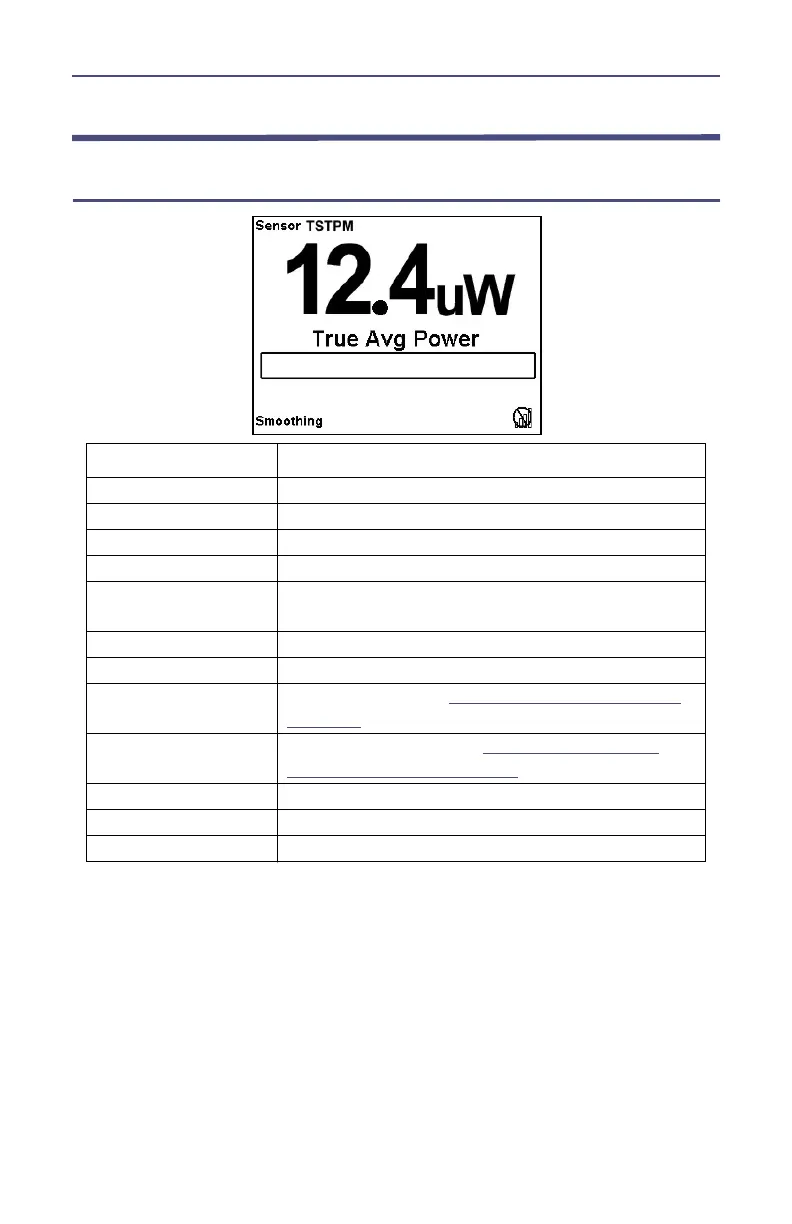

TSTPM Sensor Attached
TPS Calibration Standard Power Interface
Note: The main measurement is in the larger display located
above the graph bar. The two smaller, secondary measurements
are located below the graph bar. All of these measurements vary
depending on the main measurement displayed.
Key Button Action
Right Arrow No effect
Left Arrow No effect
Up Arrow Switch True Avg (W, uW, mW, kW, dBm)
Down Arrow Switch True Avg (W, uW, mW, kW, dBm)
Ok Button
Selects language and change all screens to reflect
the language selected
Menu Button Goes to Main Menu
Log Button Goes to Logging submenu
OK (2 Sec)
Initiates Shutdown.
See "Shutting Down" on
page 11
. (2 Sec)
Performs a screen shot.
See "Performing a
Screen Shot" on page 12
0 (2 Sec) Zero/Cal Unit/Sensor
8 (2 Sec) Turn On/Off Smoothing
Menu & Log (2 sec) Language Selection Screen
To Next Page
