Software Interfaces
29
Directional Power Sensor Attached
Forward Avg Interface
Note: The main measurement is in the larger display located
above the graph bar. The two smaller, secondary measurements
are located below the graph bar. All of these measurements vary
depending on the main measurement displayed.
Key Button Action
Right Arrow
Changes the Main Measurement to Forward Avg
Peak
Left Arrow Changes the Main Measurement to Reflected Avg
Up Arrow Switch True Avg (W, uW, mW, kW, dBm)
Down Arrow Switch True Avg (W, uW, mW, kW, dBm)
OK Button
Initiates Shutdown.
See "Shutting Down" on
page 11
Menu Button Goes to Main Menu
Log Button Goes to Logging submenu
+/- Toggles between “Small” and “Large” Display
. (2 Sec)
Performs a screen shot.
See "Performing a
Screen Shot" on page 12
0 (2 Sec) No effect
8 (2 Sec) Turn On/Off Smoothing
Menu & Log (2 sec) Language Selection Screen

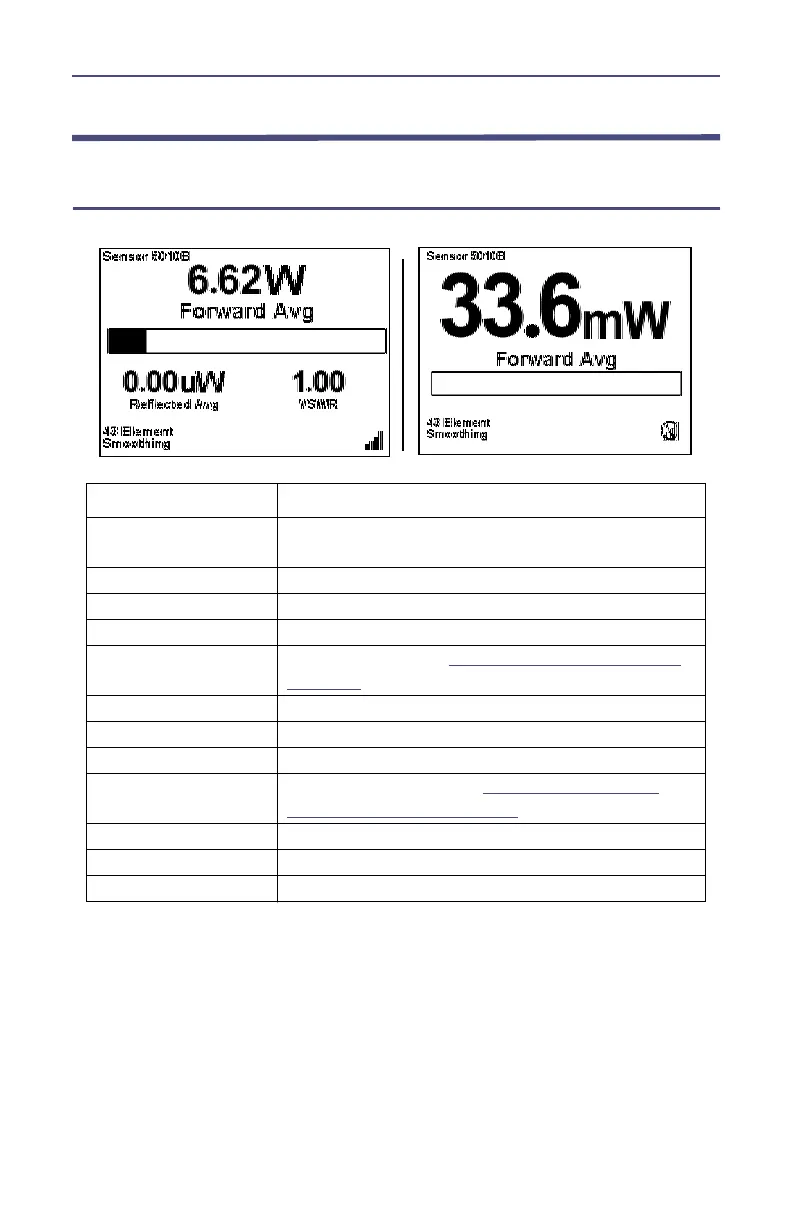

Small Display
Large Display
To Next Page
