7. Using CYCLOPS-scanner

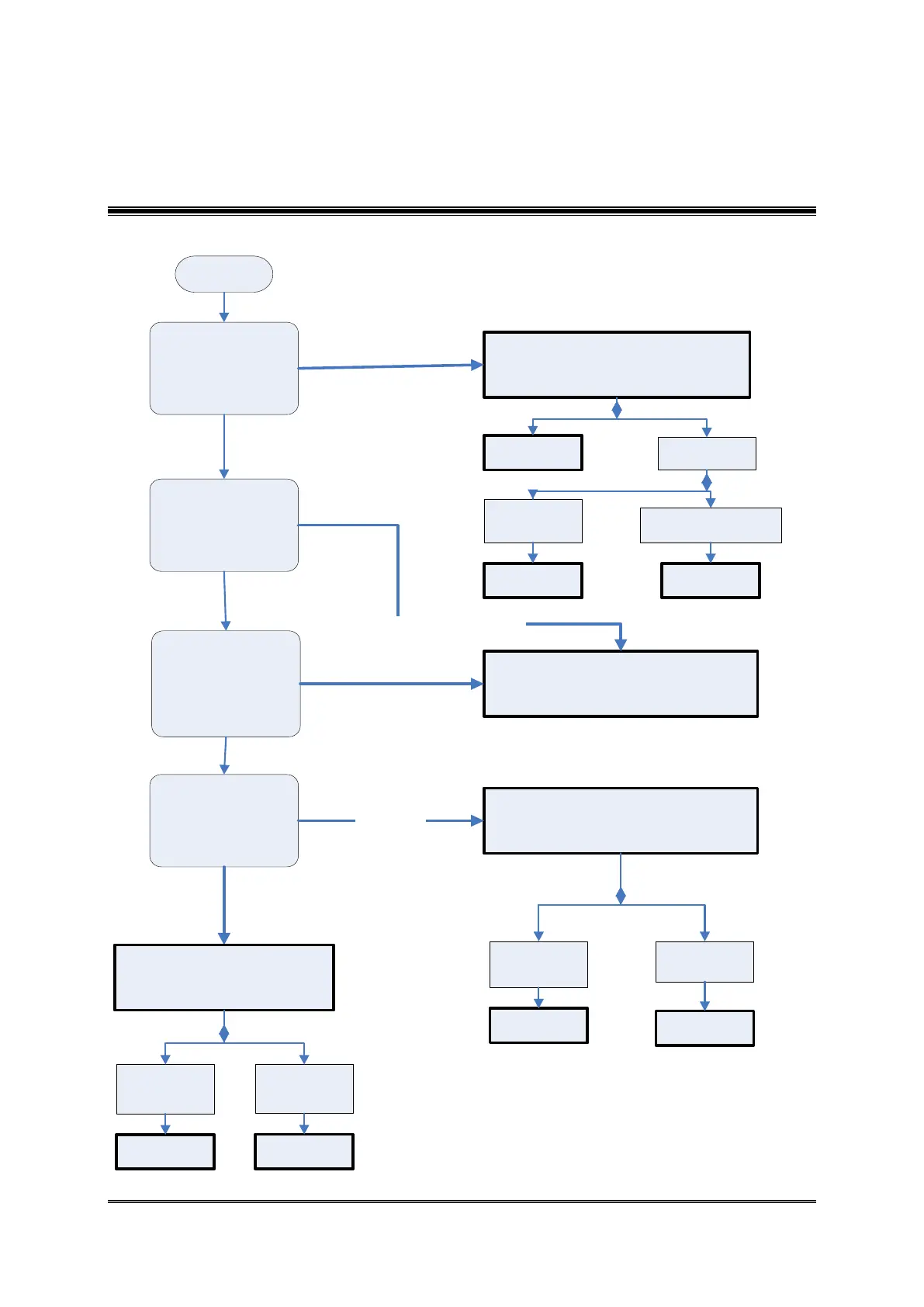

The user can follow the follow chart to select the best mode for use.
Start
The scan data must be
save to memory and
doesn’t need pairing
with smart phone or PC
via Bluetootn?
Selsect Batch mode
(reference 8.1 Batch mode setting)
transfer data
by USB
Transfer data
by Bluetooth
Send pairing
request by
BTS600
Send pairing request
by Host
SPP Master
mode
SPP Slave
mode
Is it need connect with
Apple product?
Is it the key board
interface of PC or
Android ? And need
handshake.
Real mode under HID connect
(Reference 8.2 the setting of real mode under
HID communication)
The data must be saved
Same with Key Board
Need connected with Apple product
The distance will over
10M( or over the max
distance of BT
communication)?
Use Bluetooth
Connect with PC or
Android
Real Mode under SPP connect
(Reference 8.3 the Setting of Real mode
under SPP communication)
Need Handshake
Never over
the max
distance
of bluetooth
Hybrid Mode under SPP Connect
(reference 8.4 The setting of Hybrid
mode under Spp communication)
Sometimes will over the max
distance of BT
communication
Send pairing
request by
BTS600
Send pairing
request by
Host
SPP Master
mode
SPP Slave
mode
Send pairing
request by
BTS600
Send pairing
request by
Host
SPP Master
Mode
SPP Slave
mode
