8
! Grounding the Meter
The meter is grounded through power cord. To avoid electric shock or injury,
grounding wire in the power line cord must be connected.
! Operating in Explosive Atmospheres
The meter does not provide explosion protection for explosive gasses or
arcing components. Do not operate the meter in such circumstances.

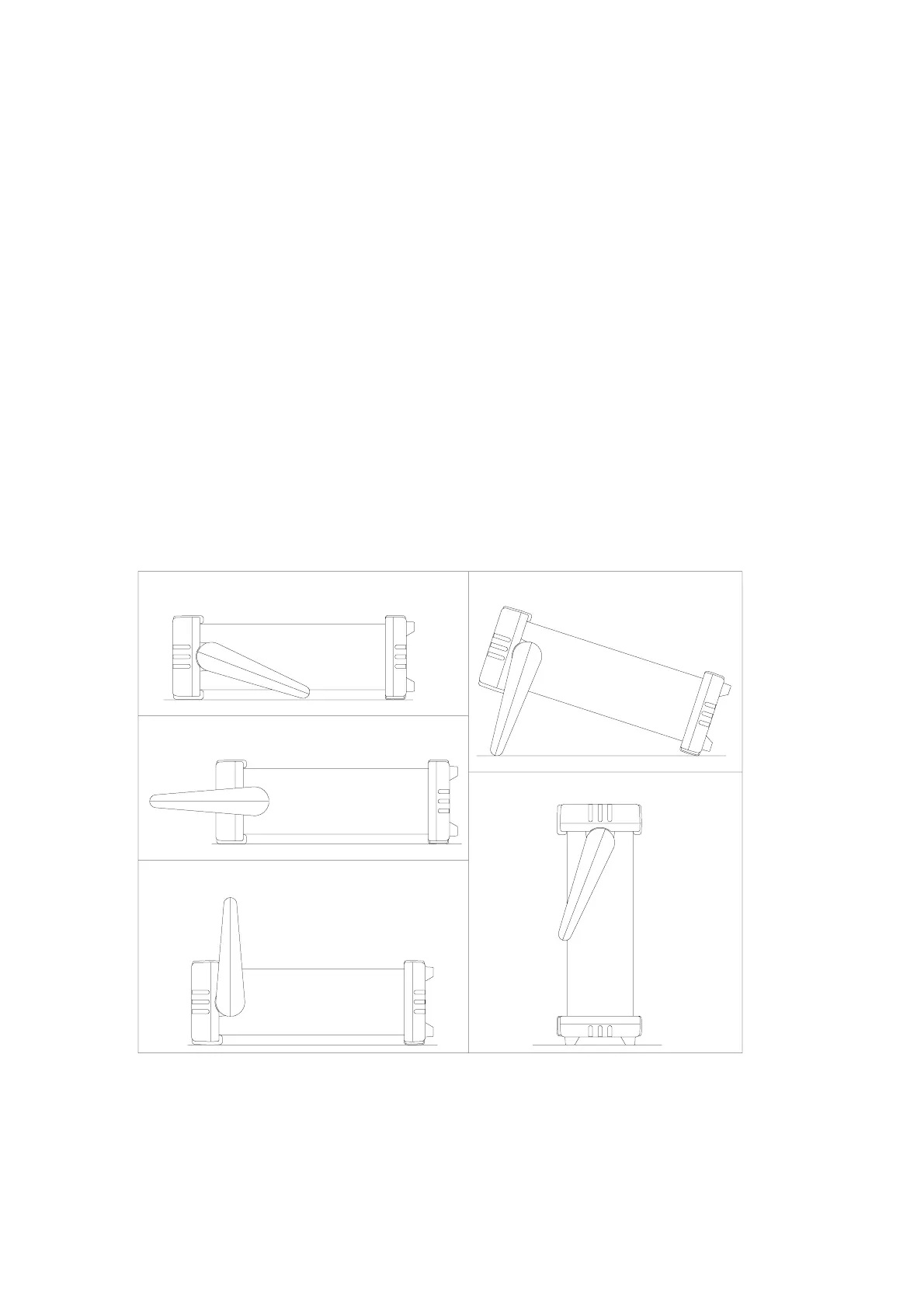

! Adjusting Handle
For bench-top use, the handle can be adjusted to provide three viewing
angles. For viewing positions, pull the ends out to a hard stop (about 1/4 inch
on each side) and rotate it to one of four stop positions (shown in Figure 2-3)
To remove the handle, adjust it to the vertical stop position and pull the ends
all the way out.
3. Remove Handle Position
2. Carrying Position
1. Viewing Position 1
4. Viewing Position 2
5. Viewing Position 3
Figure 2-3. Adjusting Handle
