37
Saving and Exiting
To save all utility menu option settings and to exit the menu, press and hold down the
button for 2 seconds. After this, the meter will exit the menu, and all settings will be saved.
Exiting without Saving
If user decides to exit the utility menu without making any changes or saving any changes to
“PuP” or “dEF”, it can be done by simply pressing any front panel buttons except , ,
, and . Note that settings that are changed under “bEEP” and “AoFF” options are
still temporarily set until the next power-up of the instrument.
USB
The USB button are used for remote communication. See “Error! Reference source not
found.” section for details.
Automatic Fuse Detection
The LCR meter has an internal fuse that protects the inputs from severely damaging the
instrument. When the meter detects that the protective fuse is open, the “FUSE” indicator will
appear on the primary display (see Figure 10 below) and an internal “beep” will sound
continuously. In this situation, none of the function buttons can be operated and all other
meter functions will be disabled.

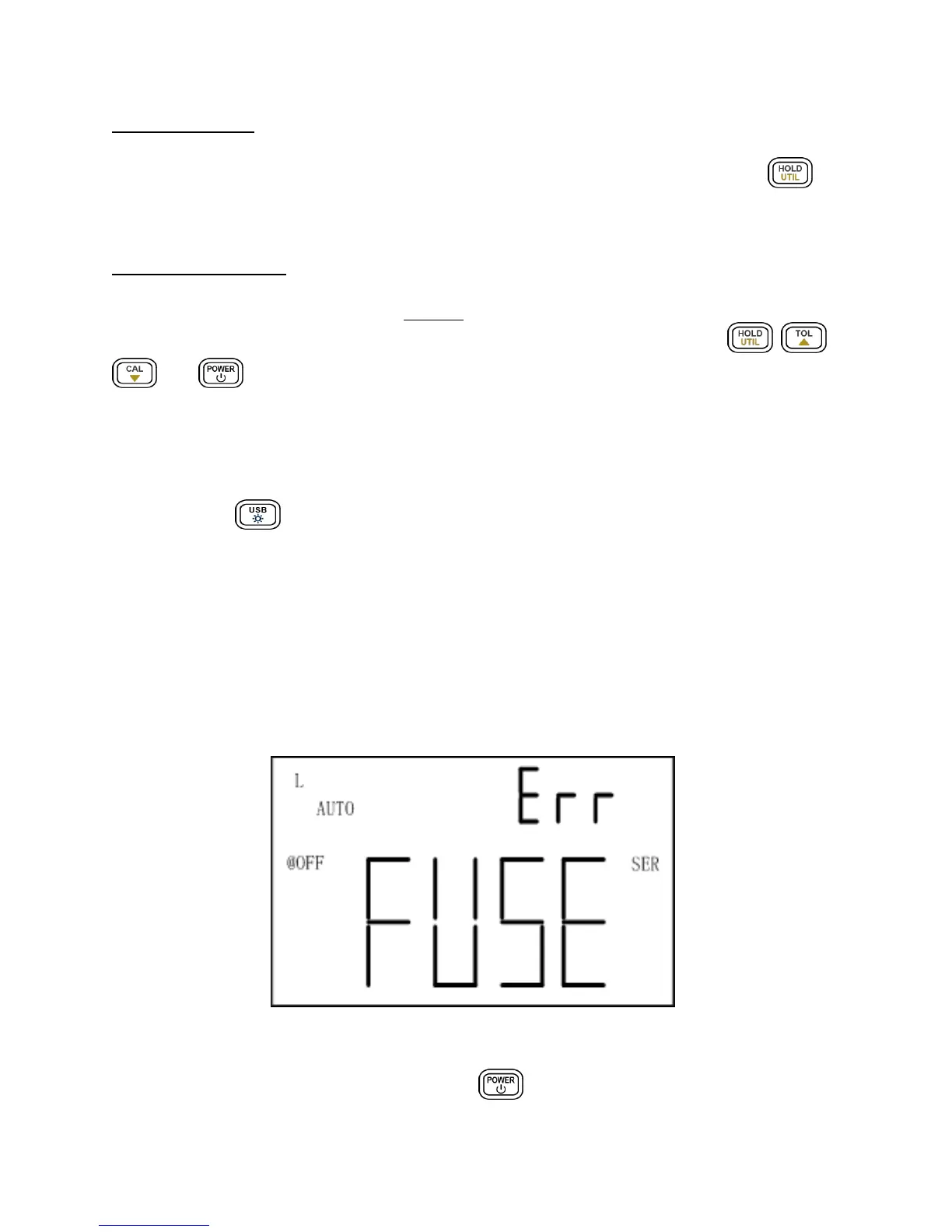

Figure 10 - Fuse Error Display
In the event that the above screen is displayed, a fuse replacement is required. Turn off the
meter by pressing and holding down the button for 2 seconds. If this does not power off
