Impedance Measurement
1.
Press button for one second to turn on the meter.
2.
Press button until “Z” is on the screen to select impedance measurement.
3.
Insert component into the input sockets or connect alligator leads into the banana jack
input terminals and connect the clips to the component leads as illustrated in Figure 15 -
Impedance Measurement Setup
4.
Press button until the desired test frequency is displayed on screen.
5.
Read the display readings for impedance measured values.

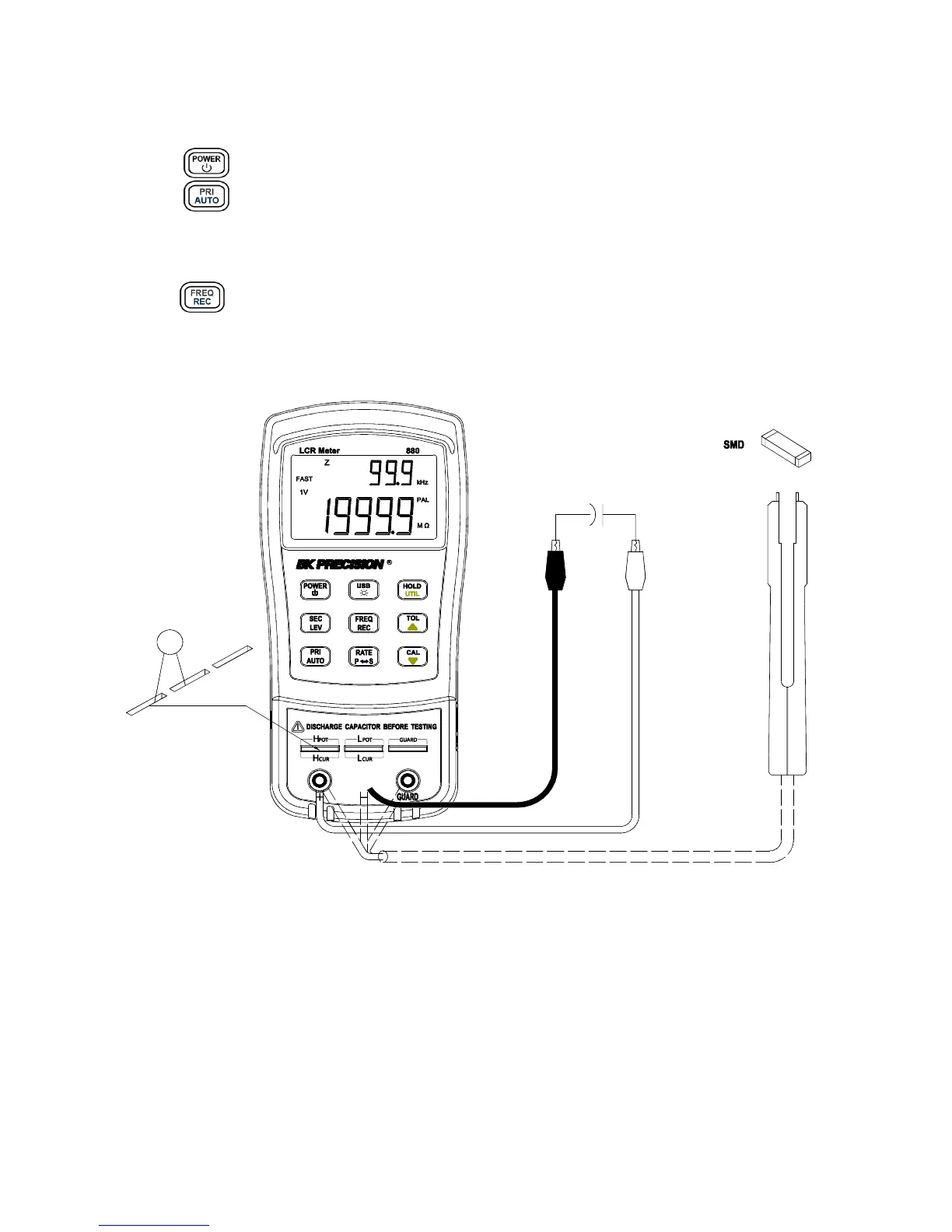

Figure 15 - Impedance Measurement Setup
