AC Resistance Measurement
1.
Press down button for one second to turn on the meter.
2.
Press button until “R” is on the screen to select resistance measurement.
3.
Insert resistor or resistive component into the input sockets or connect alligator leads into
the banana jack input terminals and connect the clips to the component leads as illustrated
in Figure 13 – AC Resistance Measurement Setup
4.
Press button until the desired test frequency is displayed on screen.
5.
Read the display readings for resistance measured values.

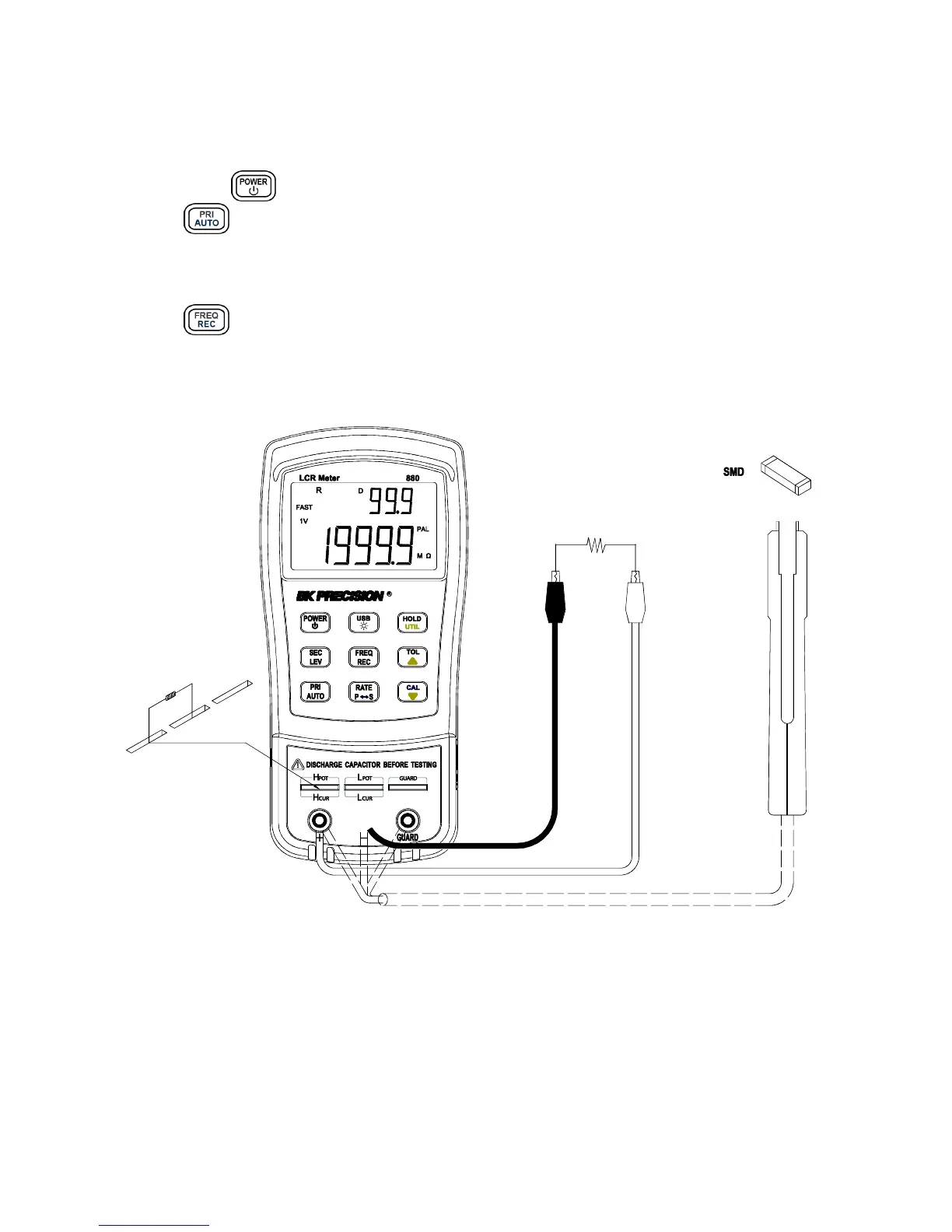

Figure 13 – AC Resistance Measurement Setup
