17
Before connecting wires to the output terminals, turn
OFF the power supply to avoid damage to the instrument and
the device under test (DUT). For safety, load wires must have
a wire gauge size large enough to prevent overheating when
the power supply operates at maximum short circuit output
current.
SHOCK HAZARD
Hazardous voltages may exist at the outputs and the load
connections when using this power supply. To protect
personnel against accidental contact with hazardous
voltages, ensure that the load and its connections have no
accessible live parts. Ensure that the load wiring insulation
rating is greater than to the maximum output voltage of the
power supply.

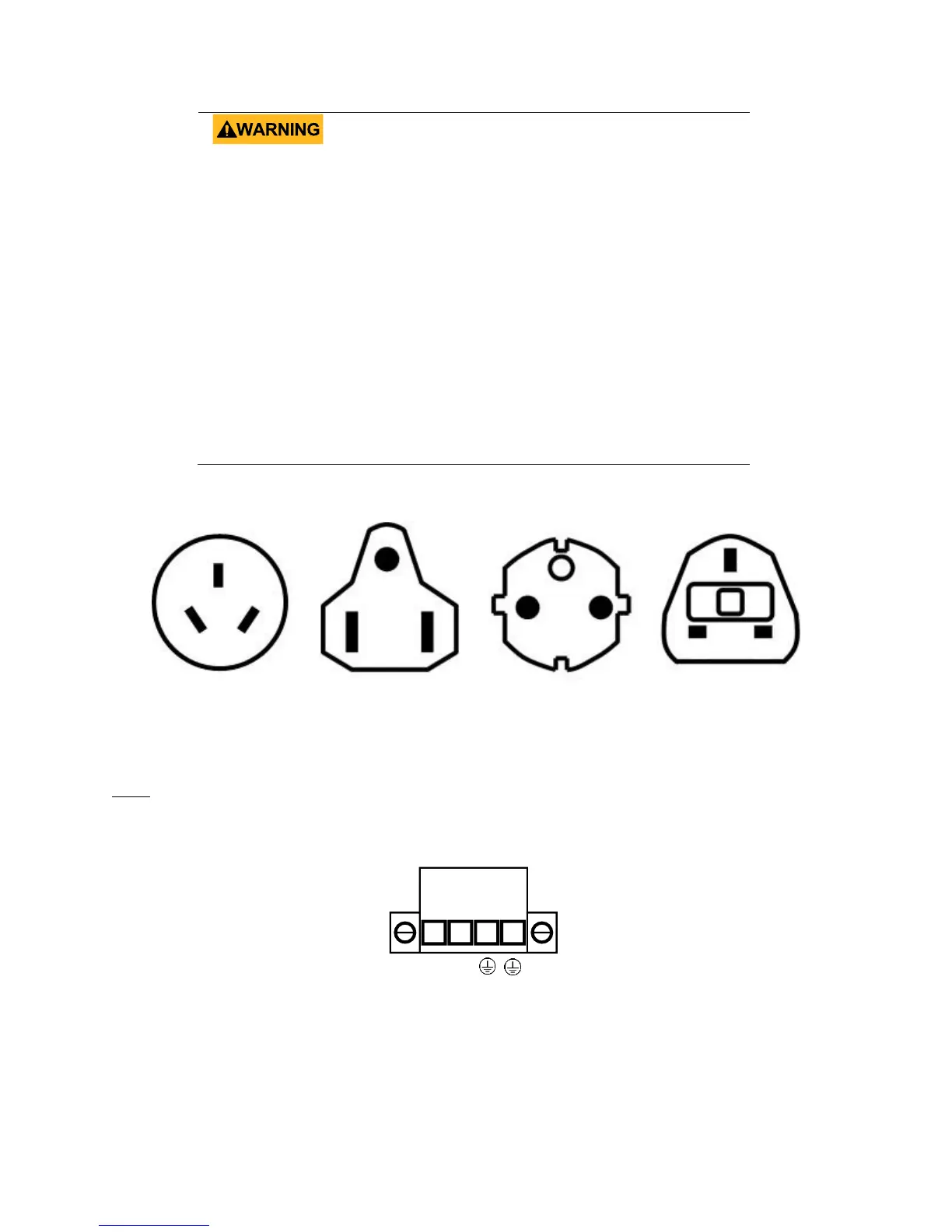

The following types of AC power plugs are accepted by the Universal AC Output Socket.
Figure 19 – Region Specific Power Cord Types
9801
The 9801 features a rear AC output terminal block which accepts a wire connection. This
terminal block is isolated from the AC power input of the instrument.
Figure 20 – Rear Panel AC Output Terminal
