Blodgett DFG-100 SERIES User Manual

Operation
23
Cook and Hold Control
ON
OFF
OVEN OFF
COOL
DOWN
COOK
LIGHTS
LIGHT OFF
OVEN READY
COOK
THERMOSTAT
COOK & HOLD
COOK TIMER
HOLD
LIGHT
HOLD
THERMOSTAT
COOK & HOLD
TIMER
1
3
2
4
5
7
8
6
Figure 15

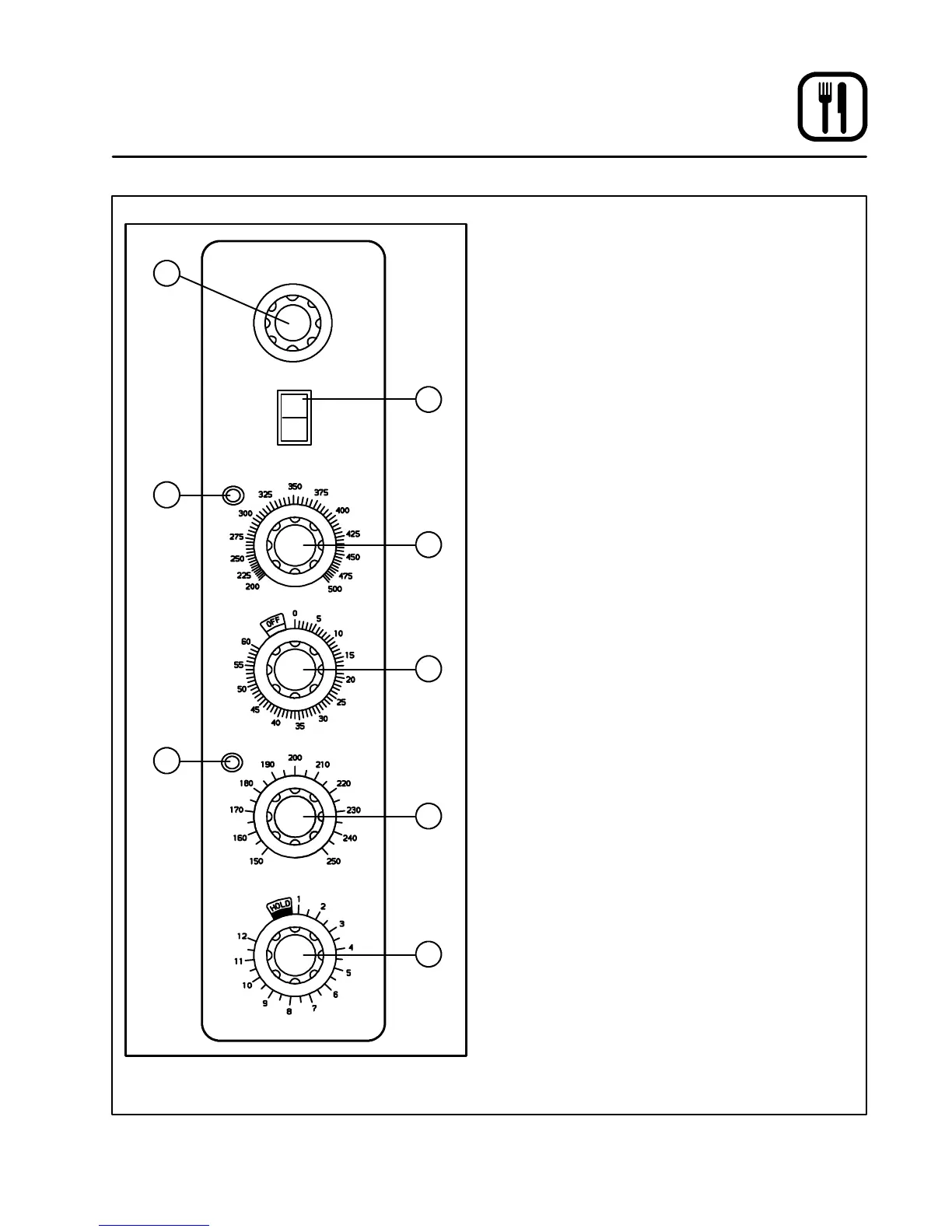

CONTROL DESCRIPTION
1. SELECTOR SWITCH --- controls power to the
oven for cook, cook & hold, and cool down.
2. LIGHTS SWITCH --- controls interior lights.
3. OVEN READY LIGHT --- when lit indicates
burner operation. When the light goes out, the
oven has reached operating t emperature.
4. COOK THERMOSTAT --- controls oven tem-
perature in the cook cycle.
5. COOK TIMER --- activates an electric buzzer
that sounds when t he cook time expires.
6. HOLD THERMOSTAT --- controls oven tem-
perature in the hold cycle.
7. HOLD LIGHT - indicates the oven is in hold.
8. COOK & HOLD TIMER --- controls the length
of cook time from 0 to 12 hours. When the
cook time ends, oven temperature control
switches fromthe cook to the hold thermostat.

Blodgett DFG-100 SERIES Specifications
