Blodgett DFG-100 SERIES User Manual

Operation
25
Pulse Plus
ON
OFF
OVEN OFF
COOL
DOWN
COOK
LIGHTS
FAN DELAY TIMER
TIMER
SOLID STAT E
THERMOSTAT
HI
LO
BLOWER
1
3
2
LIGHT OFF
OVEN READY
4
5
6
8
7
9
60Hz
Only
Figure 16

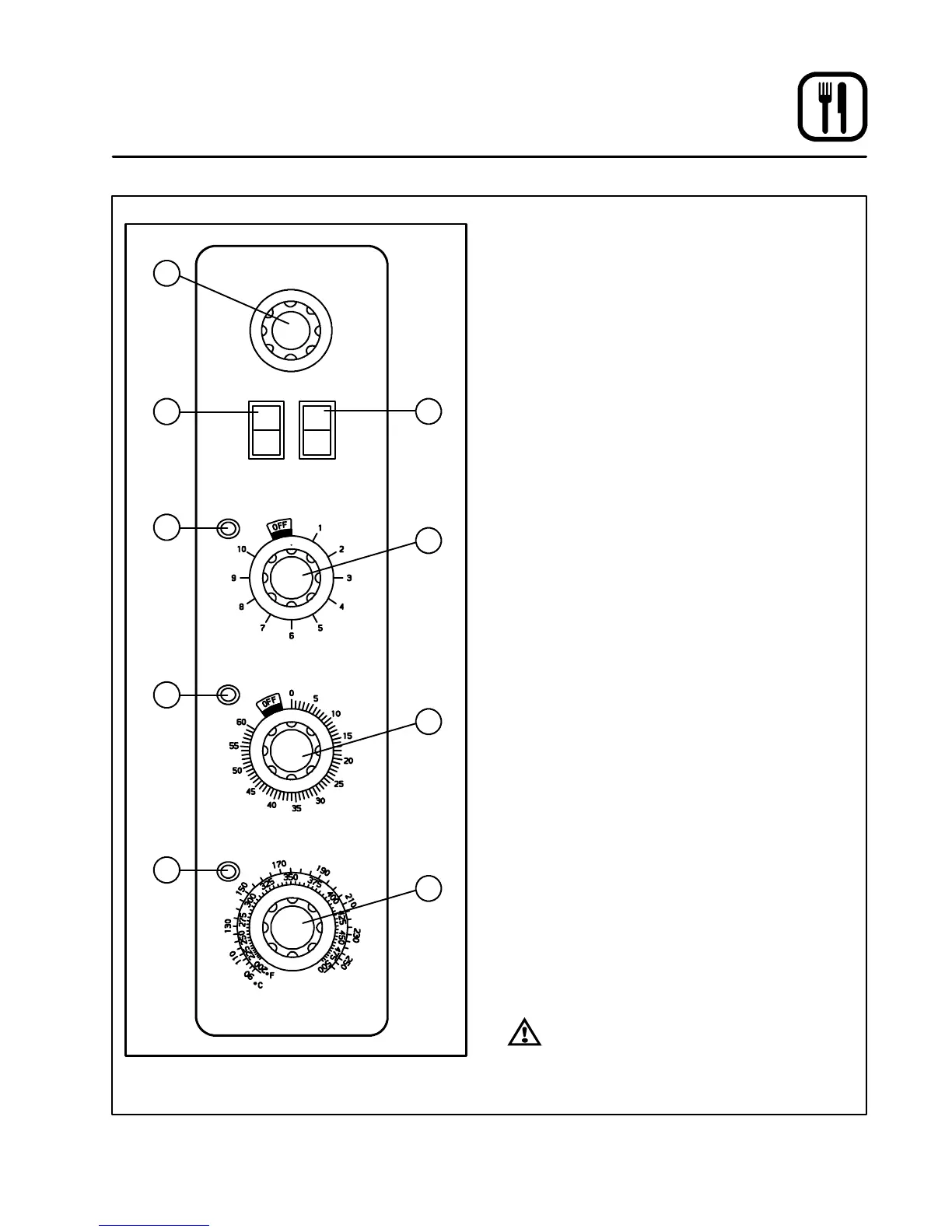

CONTROL DESCRIPTION
1. SELECTOR SWITCH --- controls power to the
oven for cook or cool down.
2. BLOWER SWITCH --- controls blow er speed,
either hi or lo. Two speed not available in 50 Hz.
3. LIGHTS SWITCH --- controls interior lights.
4. AMBER FAN DELAY LIGHT --- indicates the
oven is in pulse plus.
5. FAN DELAY TIMER --- activates pulse plus for
0---10 minutes. The blower and burners pulse
on for 30 seconds and off for 30 seconds for
the duration of time set.
6. REDINDICATORLIGHT---indicatesovenisin
the cook timer cycle.
7. COOK TIMER --- activates an electric buzzer
that sounds when t he cook time expires.
8. OVEN READY LIGHT --- when lit indicates
burner operation. When the light goes out, the
oven has reached operating t emperature.
9. SOLID STATE THERMOSTAT --- allows either
8 pre-set temperatures to be selected in ac-
cordance with customer requirements, or an
infinite selection of temperatures from
0-500_F (0-260_C). (infinite control s hown)
OPERATION
1. Turn the SELECTOR Switch (1) to COOK.
2. Set the SOLID STATE THERMOSTAT (9) to the
desired cook temperature.
3. Preheat the oven until the OVEN READY
LIGHT (8) goes out.
4. Load product into the oven.
5. Set FAN DELAY TIMER (5) for the desired time
for pulse plus operation.
6. Set the COOK TIMER (7) for the desired cook
time.
7. When the buzzer sounds, remove product
fromthe oven. Turn the TIMER (7) knob to OFF
to silence the buzzer.
8. Turn the SELECTOR SWITCH (1) to OVEN
OFF.
WARNING!!
Acompletefiveminuteshutdownmustbe
observed before the oven is relighted.
