3.2 B500 External ports description
Connect port name
Inverter signal
connect port
（PCS Link ）
Battery pack
signal input port
（PACK LinkIn）
Battery pack signal
output port
( PACK LinkOut )
Positive output
line port
Negative output
line port
Used to connect the inverter, only the
top battery pack needs to connect inverter.
Connect port function Remark

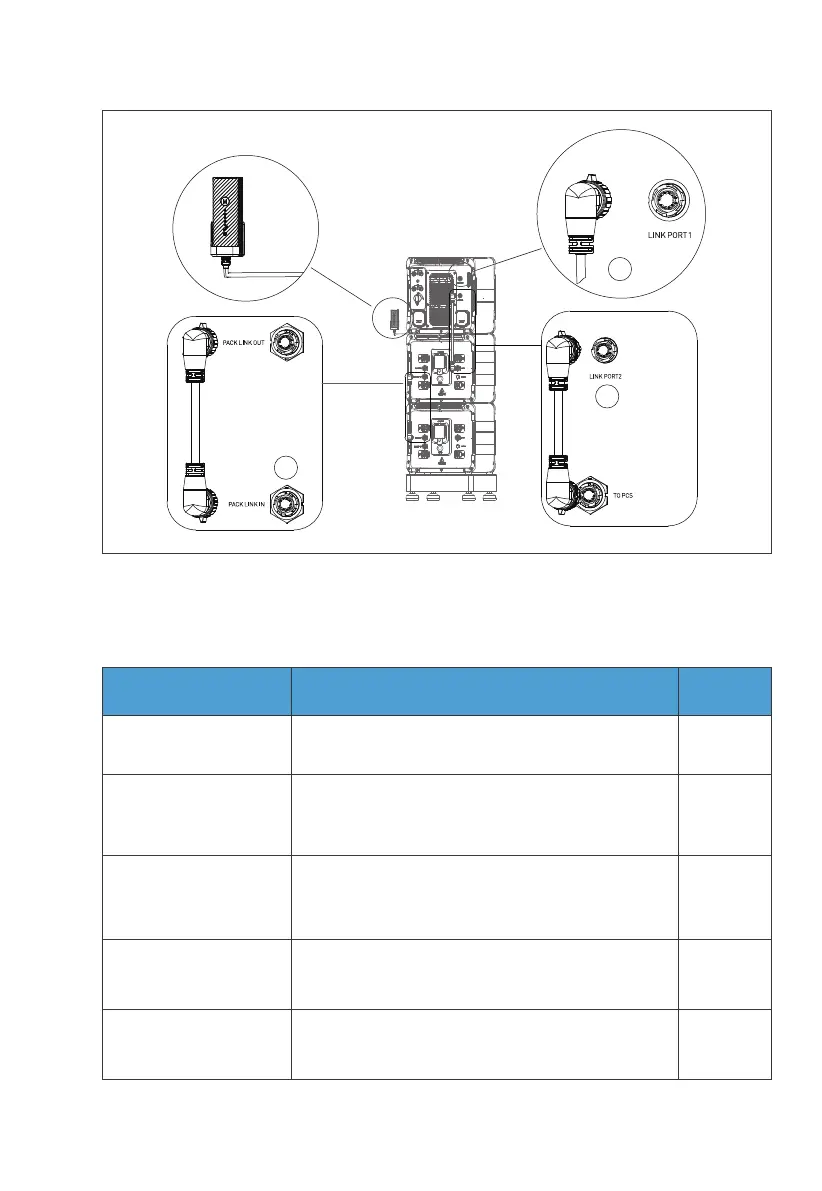

Figure 3-1
Table 6-2
When the battery is installed in a stack, it is used to
connect the battery pack signal of the previous battery
The output port, such as the inverter above, is not
connected.
When the battery is installed in a stack, the battery
pack signal used to connect the next battery, The
input port,such as the battery pack is the bottom one,
then do not connect.
Used to connect other batteries’ Positive
output line port or connecting to an inverter
device BAT+ port.
Make sure
it's plugged
into place
Make sure
it's plugged
into place
used to connect other batteries’ Negative
output line port or connecting to an inverter
device BAT- port.
