Remarks: For system installation, a maximum of 5 layers of Energy Storage System
(include inverter) are stacked on the base. Each time a battery pack is added or
removed, one group of mounting holes will be added or reduced accordingly, and
the distance between adjacent battery packs is 325mm (combined with practical
operations).
2.5 installation tools
Prepare the tools needed for installation and electrical connections.
Project installation location

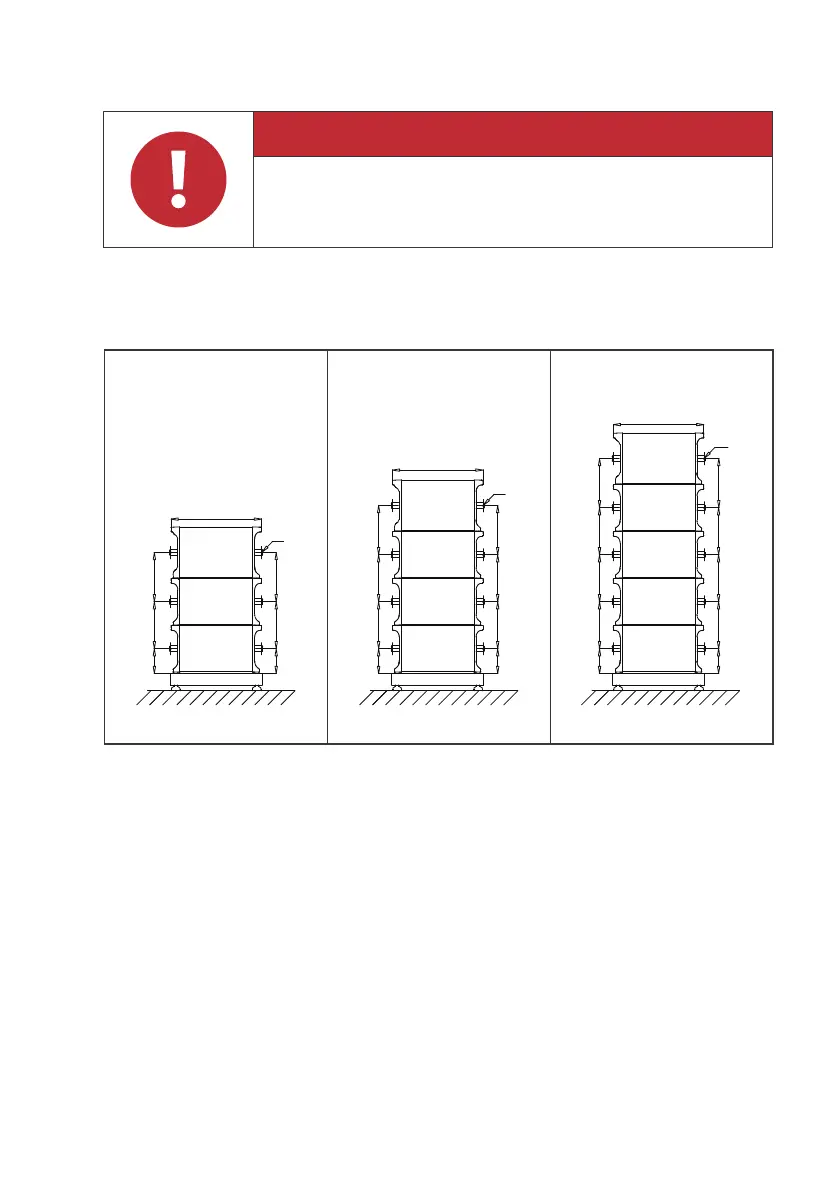

Size of drilling the wall mounting holes (unit: mm):
Danger
Before drilling, please make sure to avoid the pre-buried water and
electricity lines in the wall to avoid danger.
Figure 2-5
( 3 layers)
Ground Ground
Ground
( 4 layers)
( 5 layers)
171.5mm
325mm 340mm
340mm325mm171.5mm
6-Ø8
626mm
171mm 325mm 325mm 340mm
171.5mm 325mm 325mm 340mm
8-Ø8
626mm
171.5mm
325mm 325mm
171.5mm
325mm 325mm
325mm 340mm
325mm
340mm
10-Ø8
626mm
