2.6 installation steps

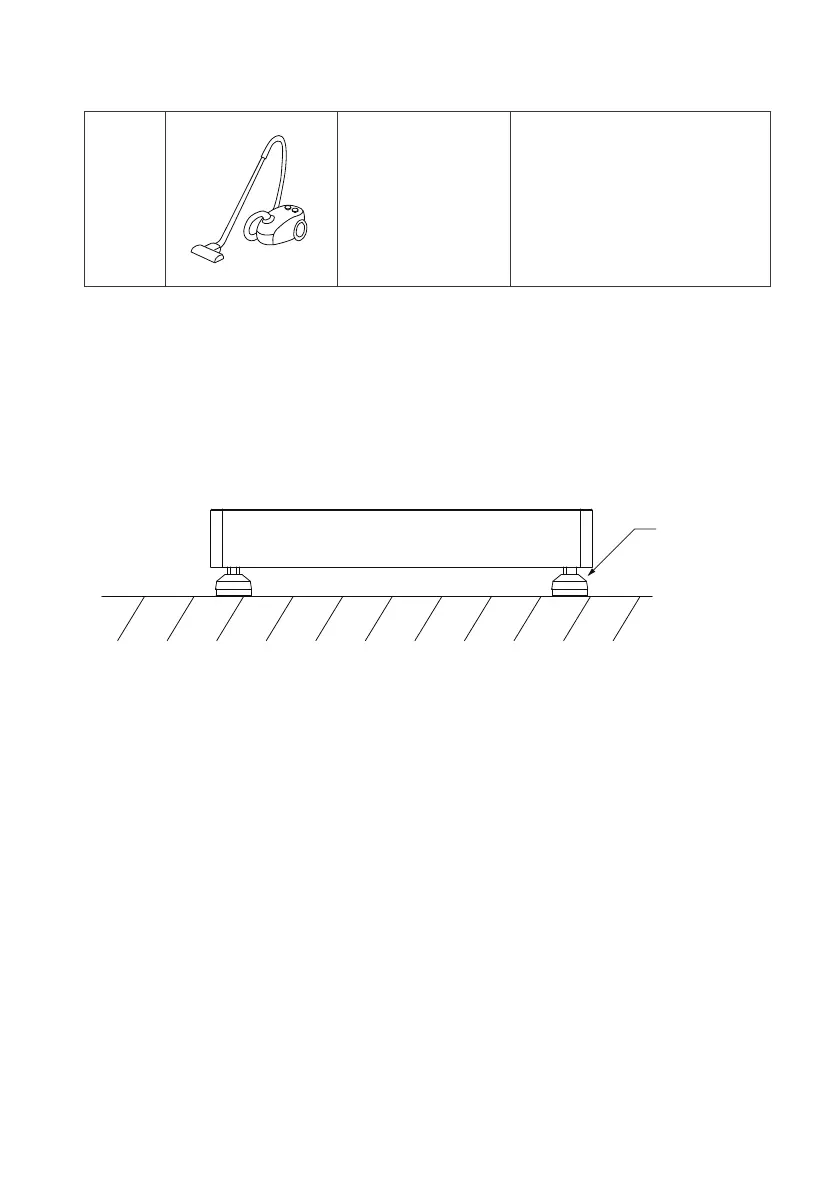

Step 1: Place the base on the ground of the installation position, adjust the height
of the foot cup to make the base land stably. After the height of the foot cup is
adjusted, tighten the nut so that the foot cup is not loose.
Step 2 : According to the size of the installation location diagram of the project in
Figure 5-5 , use a measuring tape to find the drilling position, mark it with a
marker, and then use an electric drill to drill the hole on the installation wall, and
install the M8 expansion bolt.
Step 3 : Hold the handles on two sides of the B500 battery pack by two people,
lift it out of the box and carry it to the installation position, place it on the base,
and place the four feet of the battery pack in the four grooves of the base.
Step 4 : Take 2 mounting brackets No.1 and fix them on two sides of the battery
pack with 4 M5X10 screws, then attach the mounting brackets No.2 through the
expansion bolt and the pressure riveting screw of bracket No.1 , and finally fix it
with M8 and M5 nuts.
Step 5 : Repeat Step3 and 4 , and fix the subsequent battery packs in turn.
Step 6 : Repeat Step3 and 4 to install the EP600 inverter on the top of the
battery pack.
Table 2-4
22
Clean the site before
and after installation
Vacuum cleaner
Ground
Height of 4 foot
cups can be
adjusted
