3.7 Connecting the positive and negative poles of the battery
Step 1 : Remove the positive and negative protective cover of the inverter battery
with a screwdriver(Figure 6-6-1/6-6-2);
Step 2 : Connect the negative battery cable to the terminal of the negative
junction box, and fasten the M8 screw with a screwdriver or sleeve. The recom-
mended tightening torque is 8N.m. Then put the negative protective cover into
the negative terminal box, and fasten the M4 screw with a screwdriver. The
recommended tightening torque is 2N.m(Figure 6-6-3);
Step 3 : Connect the positive battery cable to the terminal of the positive junction
box, and fasten the M8 screw with a screwdriver or a sleeve. The recommended
tightening torque is 8N.m. Then put the negative protective cover into the
negative terminal box, and fasten the 4 M4 screws with a screwdriver. The
recommended tightening torque is 2N.m( Figure 6-6-4).
Step 4 : Connect the battery packs.

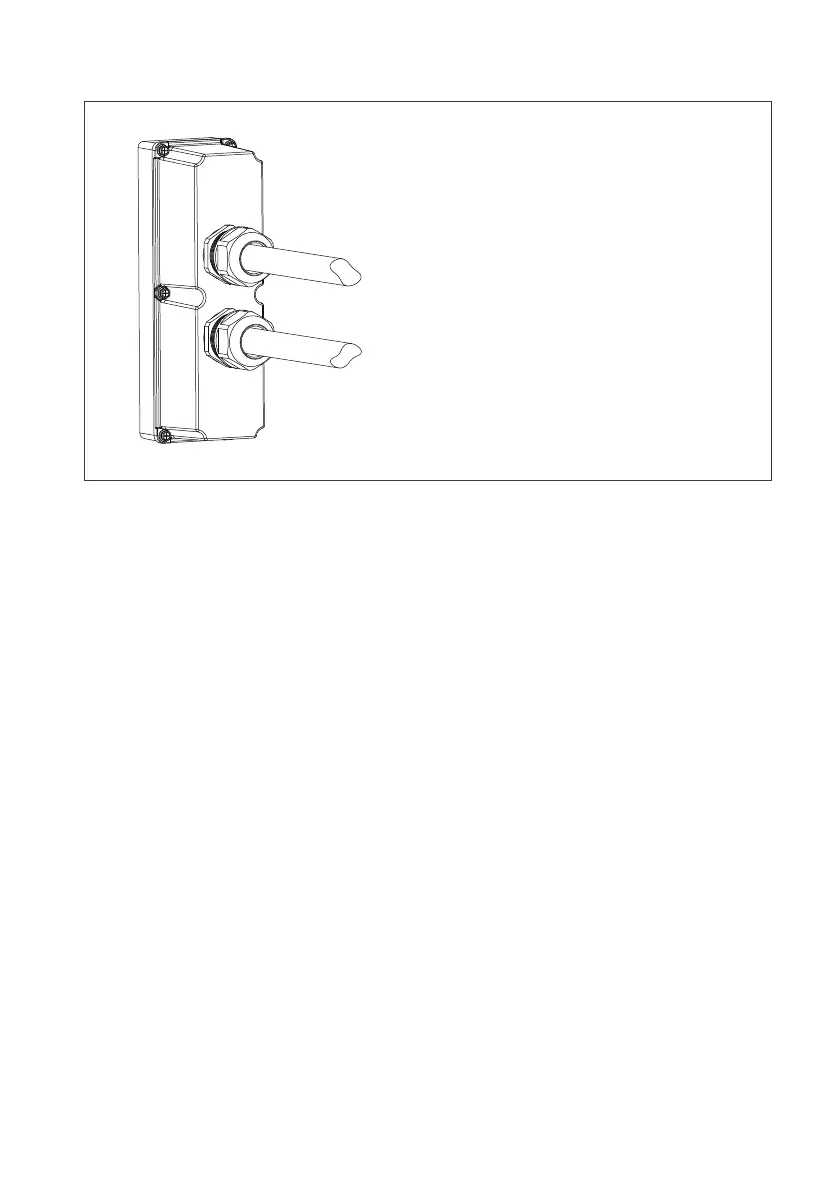

Tighten the two PG waterproof joints,
and the torque is recommended to be 3N.M
Figure 3-6 Load cable connection
