Step 2 : Insert the wire core with the insulation layer stripped into the conductor
crimping area of OT terminal, and press it with crimping pliers(Figure 3-5-2).
Step 3 : Connect the cable with crimped terminals according to the electrical
polarity of the load symbols marked on the junction box, and fasten with a
screwdriver(3-5-3).
Step 4 : Connect the cable with crimped terminals according to the electrical
polarity of the grid symbols marked on the junction box, and fasten with a
screwdriver(Figure 3-5-4).
Step 5 : Put the PG waterproof connector into the AC protective cover of junction
box , and tighten the hexagonal nut on the bottom of the PG waterproof connec-
tor with a socket tool( Figure 3-5-5).
Step 6 : Pass the cable through the PG waterproof connector , then fix the
protective cover to the junction box with 6Pcs M4 screws. Tighten the screws with
a cross screwdriver(Figure 3-5-6).
Step 7 : Tighten the nut outside the PG waterproof joint clockwise(Figure 3-5-7).

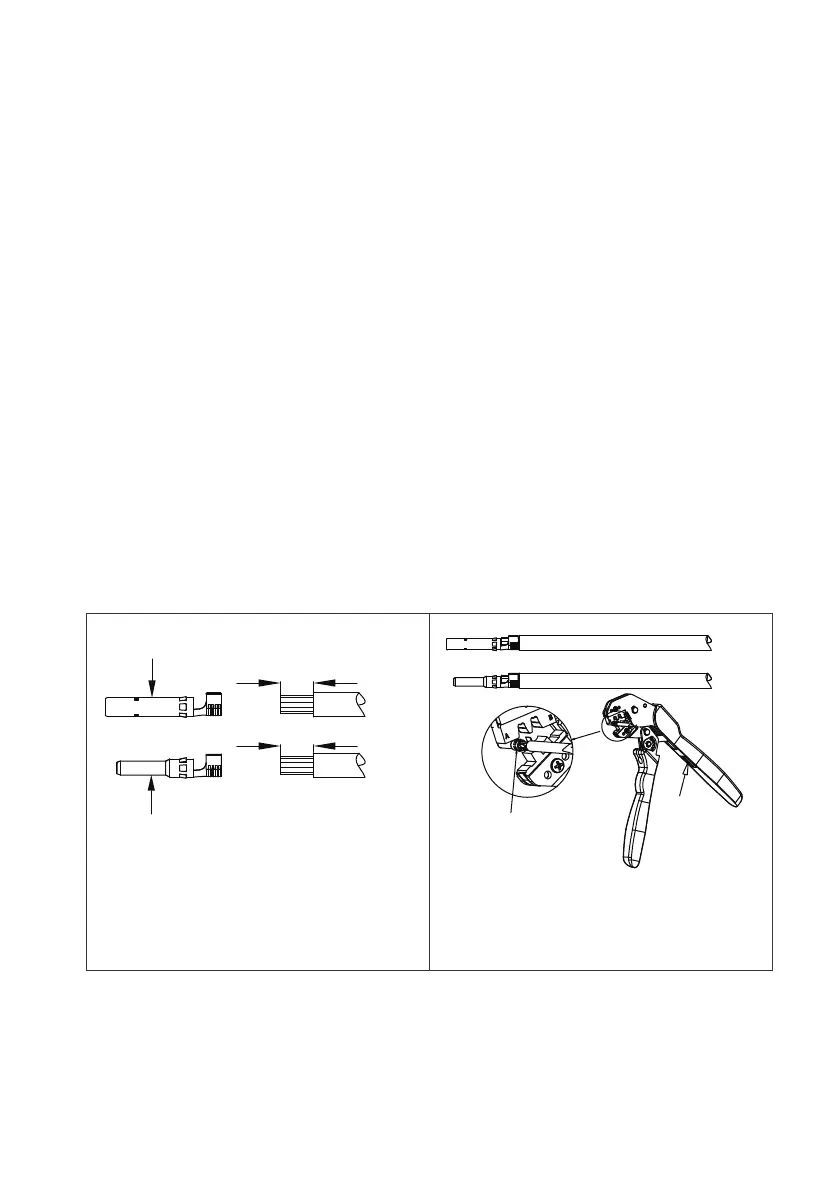

Figure 3-5-1 Figure 3-5-2
1 . Positive metal core
2. Negative metal core
7-9mm
7-9mm
2
1
Crimping pliers
Press
