6.6.4 Battery Power Cable
Step 1：Connect two B500 battery packs via the battery expansion cables - black
cable for negative terminals, red for positive terminals. See “①” “②” of Figure 6-10-1
and 6-10-2.
Step 2：Connect the top B500 to EP800 inverter via the battery power cables - black
cable for negative terminals, red for positive terminals. See “③” “④” of Figure 6-10-1
and 6-10-2.
• Fix the black battery power cable to the EP800 inverter BAT- terminal with M8
screws.
• Secure the black protection cover with M4 screws. See Figure 6-10-3.
• Connect the other end of the cable to the B500 BAT- terminal.
• Repeat to connect the red battery power cable. See Figure 6-10-4.
Recommended torque: Less than 6N m (53- to 58 in-lbs) for M8 screws, 1.2N m (11
to 16 in-lbs) for M4 screws.
Step 3：Check that the cables are properly connected.

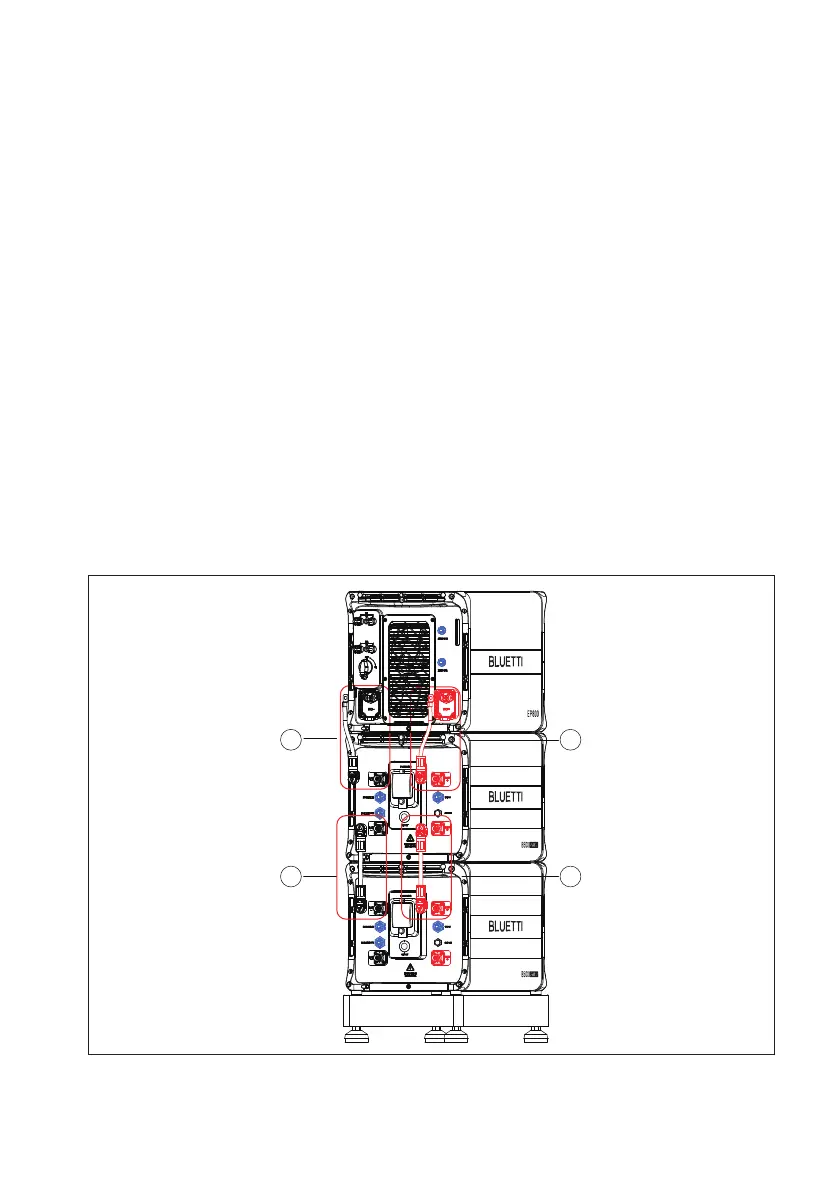

Figure 6-10-1
