Bluetti EP800 - Page 52

JUST POWER ON52

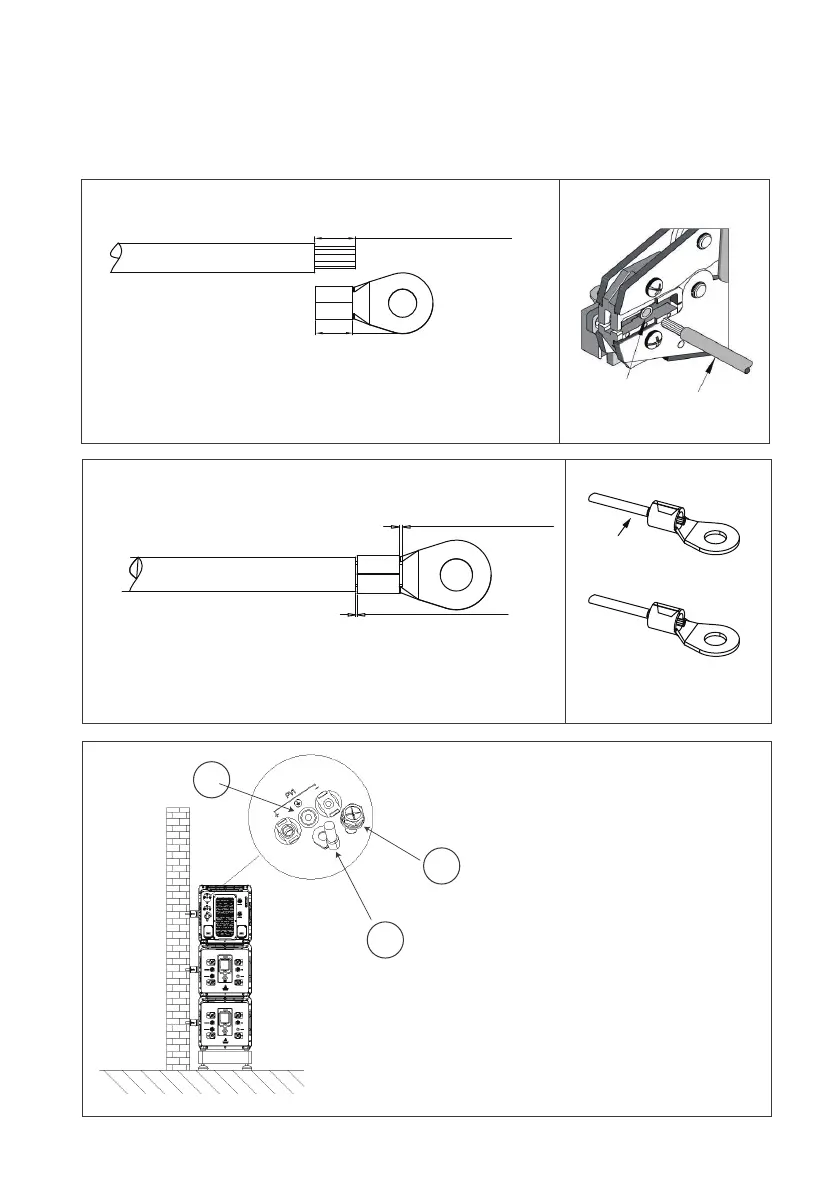

L2 is L1+0.12in / 3mm longer than L1
6-9-1
L2=L1+0.12in / 3mm
L1
6-9-2 6-9-3
1
2
3
1 . M5×10 screws
2. OT terminal
3. PV grounding pole
L3≥0.08in / 2mm
L4≥0.04in / 1mm
Visible wire
Qualified
Wire even or bulge
up to 0.04in / 1mm
Figure 6-9-3 Grounding Connection
Terminal block
Wire
The cavity formed after crimping the conductor crimp strip shall wrap the core
wires completely. The core wires shall contact the terminal closely.
