JUST POWER ON 55
Max. Torque: 6N m (53- to 58 in-lbs)
Max. Torque:
1.2N m (11 to 16 in-lbs)

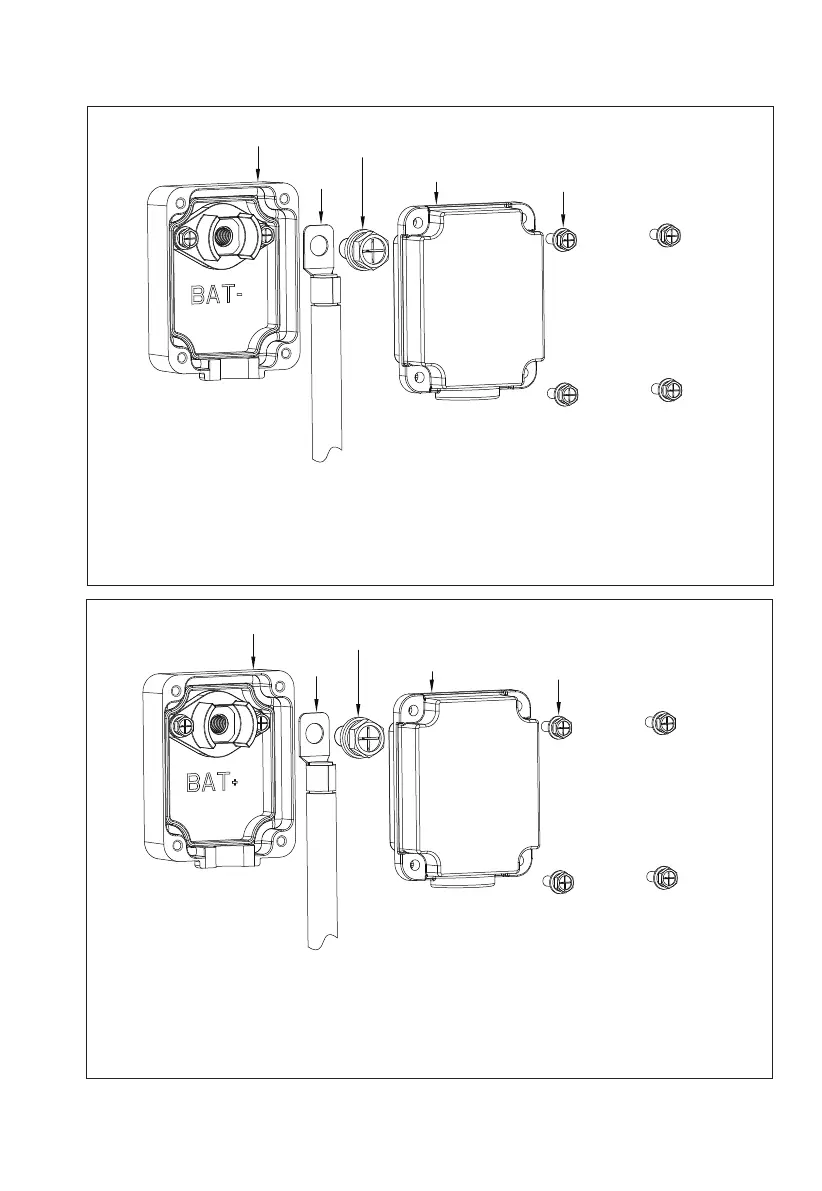

1. Inverter BAT+ terminal (Red)
2. Red battery power cable (BAT+)
3. M8*12 screws
4. Red protection cover (BAT+)
5. M4*12 screws
1
2
3
4
5
1
2
3
4
5
Max. Torque: 6N m (53- to 58 in-lbs)
Max. Torque:
1.2N m (11 to 16 in-lbs)
1. Inverter BAT- terminal (Black)
2. Black battery power cable (BAT-)
3. M8*12 screws
4. Black protection cover (BAT-)
5. M4*12 screws
Figure 6-10-3
Figure 6-10-4
