IoT Controller
6.6.5 Communication Cable
Step1：
To achieve communication between two B500 battery packs, a communication
cable is required. Plug one end of the cable to the B500 Link-in port, and the other
to the upper B500’s Link-out port. See Fig. 6-11 “①”.
Step2：
For communication between the EP800 inverter and B500 battery packs, plug one
end of the communication cable to the top B500’s inverter signal port (To Pcs), and
the other to the Link Port 2 of the EP800 inverter. See Fig. 6-11 “②”.
Step3：
Connect the IoT controller to the EP800 inverter. See Fig. 6-11 “③”.
Note: For how to integrate multiple B500s to the EP800, please refer to Fig. 6-8.

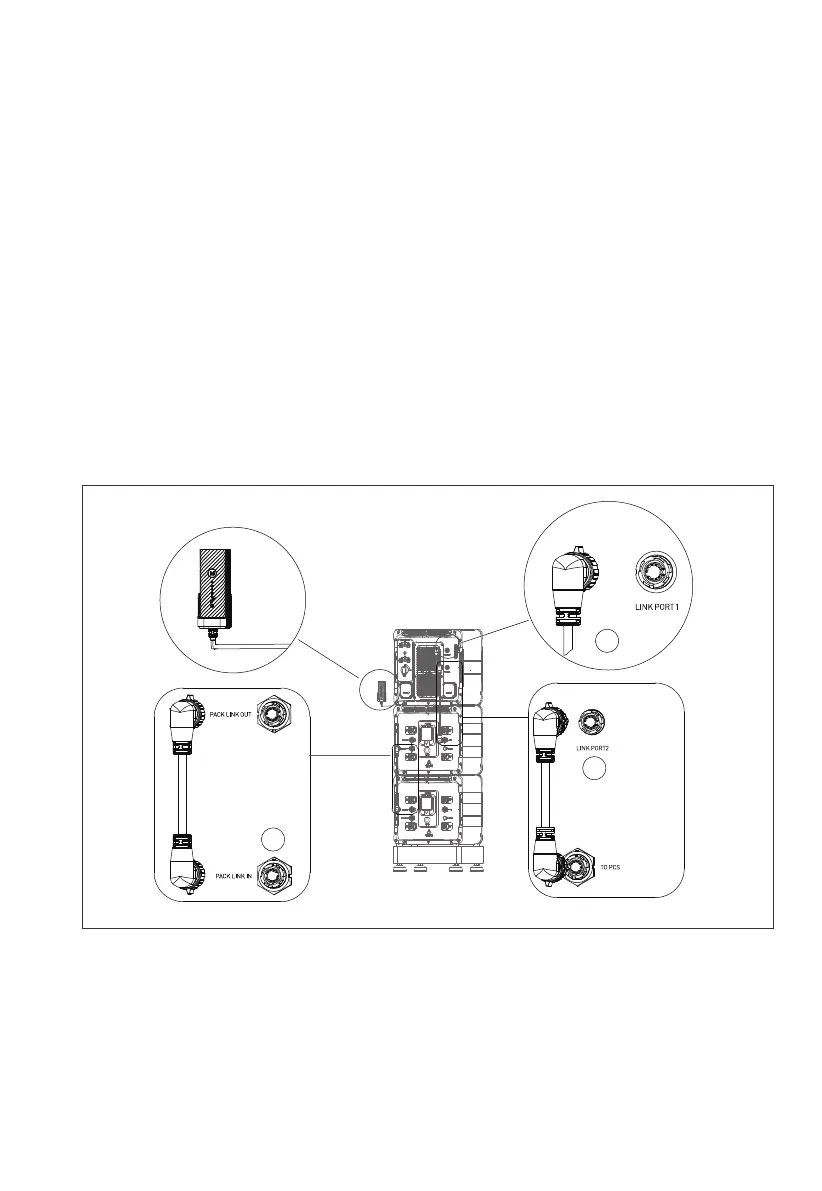

Figure 6-11
