Housing length: The cables housings have to be cut at the correct lengths (see page 36).
Cables routing: The cables can be routed in the brake booster like on the standard
assembly (see page 39-57). Temporary removing the brake booster mechanism from the
converter box will provide more space to work.
Pay attention to cross the housing correctly, the correct paths of the housing is shown below.
Right-hand front brake assembly
The distance from end of casing to brake stoppers have to be
32mm (see page 46).
Reinstall the brake booster in the converter box.

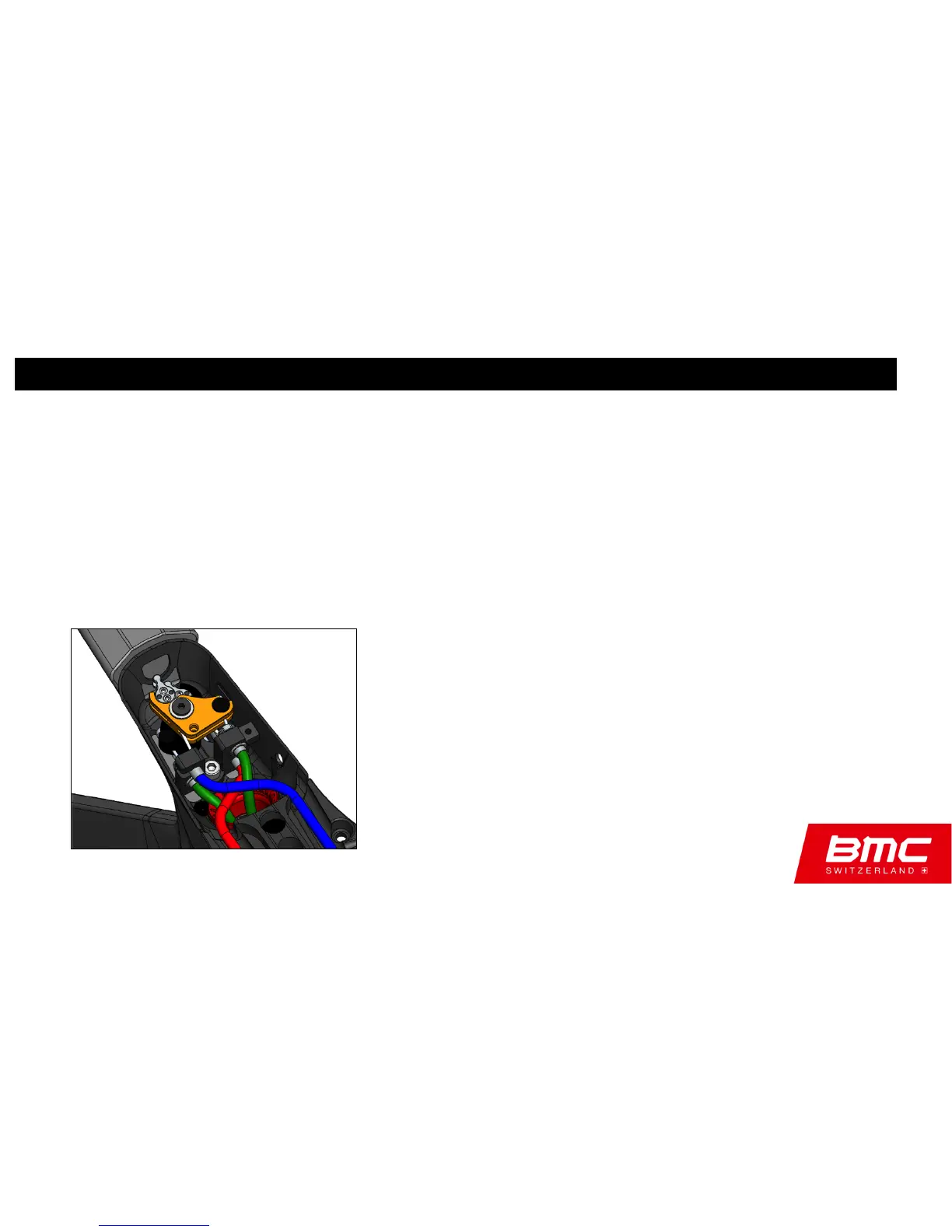

The correct routing of the housing in converter box:
Red front brake / Blue rear brake
Green standard assembly
