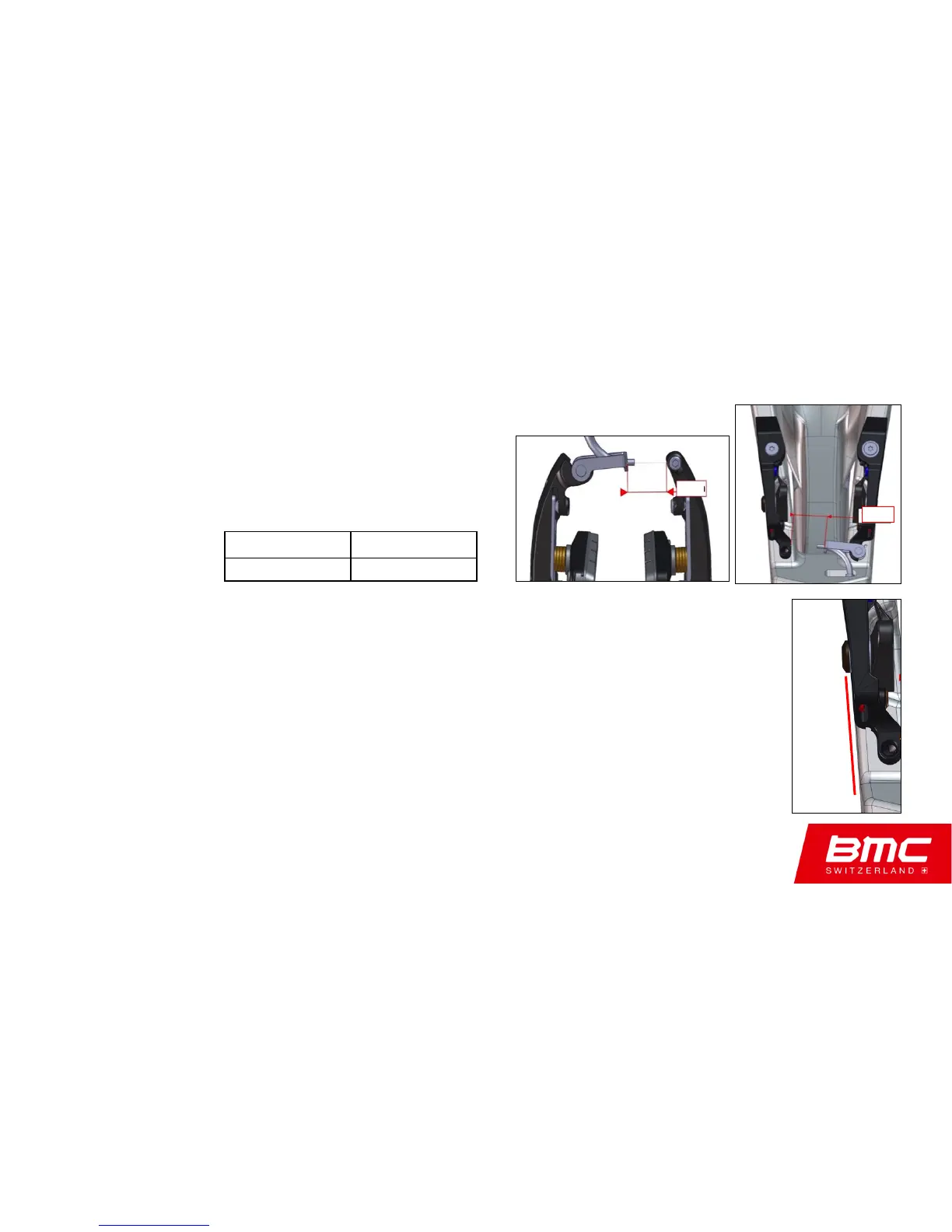

8. With Brake Calipers installed, set the caliper
to a pre-defined spacing, as follows:
Brake Caliper Setup
20
22
Front Rear
20mm 22mm
One objective of this step is to align the brake caliper and frame, as seen in the
image – small adjustments of provided measurements might be necessary.
(Following this guideline will help ensure the Front Caliper Cover does not
interfere with the caliper function.)
Step 8
frame & caliper alignment
FRONT
REAR
To Next Page
