28
Load Output Status Indicators
A LED for each load output indicates the status of output. There are 14 LEDs for 14
outputs.

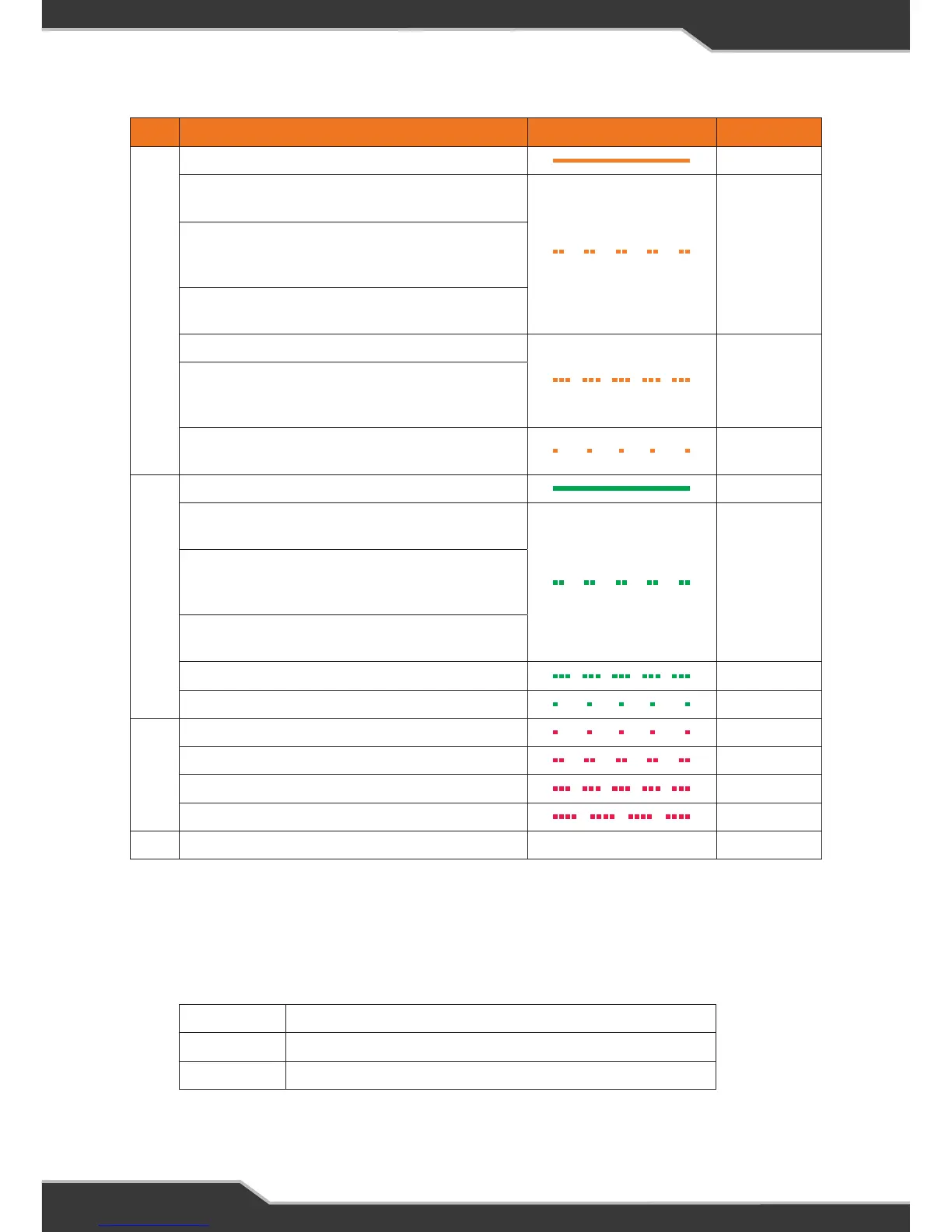

Colour Code Flash Status
Orange: Charging
AC mains is the source and is in bulk mode Solid
BatteryPlus35SR/HA
Solar is the source and is in bulk mode
2 flashes
BatteryPlus35SR/HA
Solar and Auxiliary available at the same time and
Solar is in bulk mode
BatteryPlus35PM
Solar is the only source and Solar current >1A
Auxiliary is the only source and Aux current is >2A
3 flashes
BatteryPlus35PM
Auxiliary and Solar available at the same time and
Aux current is >2A and Solar is >1A
Battery Voltage <12V and >7V and AC mains or
solar input is available
1 flash
Green: OK
AC mains is the source and is in float mode Solid
BatteryPlus35SR/HA
Solar is the source and is in float mode
2 flashes
BatteryPlus35SR/HA
Solar and Auxiliary available at the same time and
Solar is in float mode
BatteryPlus35PM
Solar is the only source and Solar current <1A
Auxiliary is the only source and Aux current is <2A 3 flashes
No sources available and house battery is OK 1 flash
Red: Error
Fault: Over-temperature 1 flash
Fault: Battery Fault 2 flashes
Fault: Solar Fault 3 flashes
Fault: Other Fault 4 flashes
Battery low voltage and no sources available All off All off
Green Output OK
Red Fault on the Output
OFF Low battery voltage or remote load isolating switch
