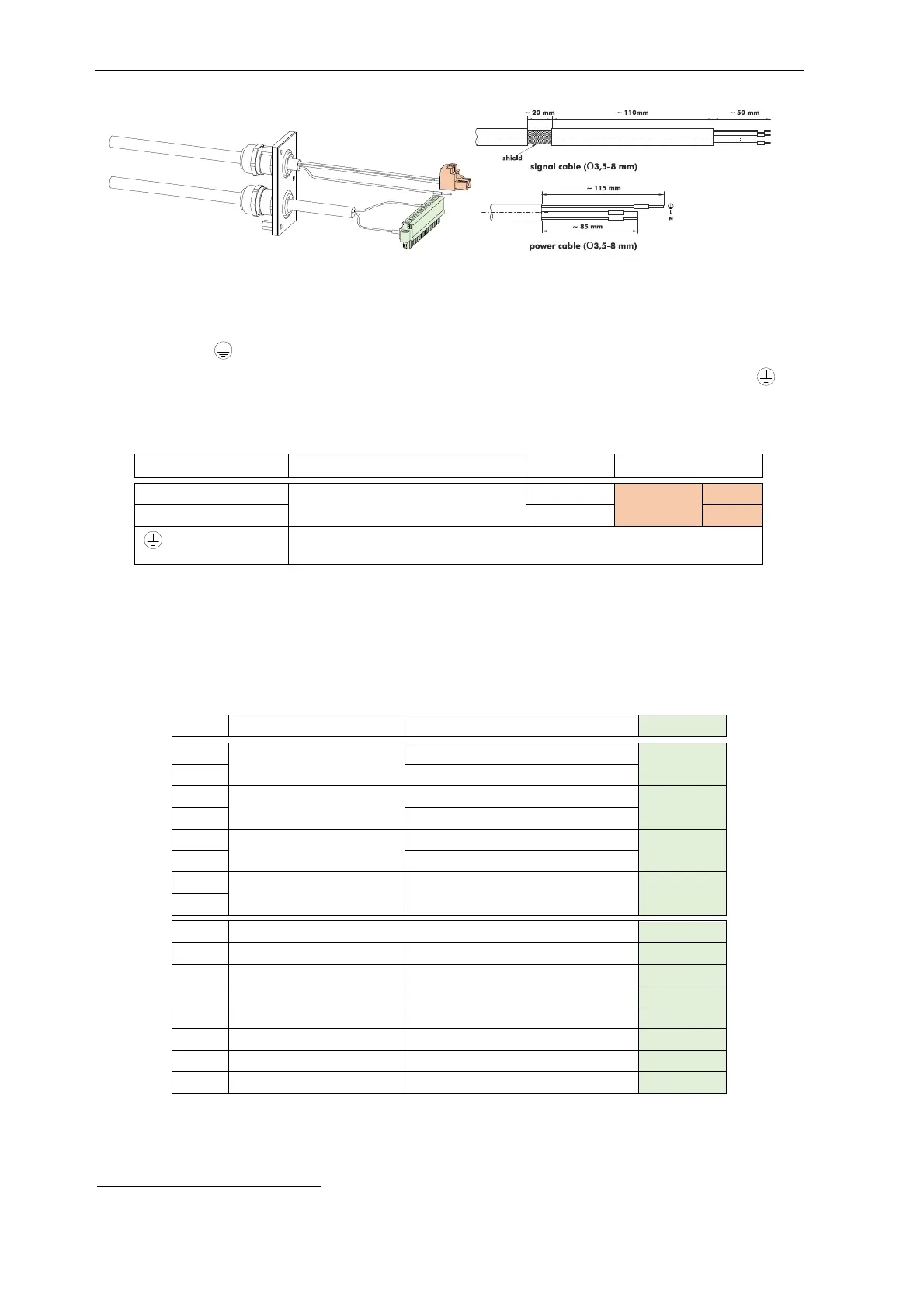

Connect the power carrying wires to the orange two pole female plug labeled “L” and “N” which
came with the instrument. Attach these wires to each other with a cable tie tightly behind the orange
two pole female plug. Connect the protective conductor (PE) of the cable to the protective con-
ductor terminal . Plug the orange two pole female plug with the power carrying wires into the
orange two pole connector on the PCB. Give enough slack on the PE (Protective Ground ) to
ensure that, if the strain relief of the cable gland should fail, the power carrying wires are discon-
nected first.
Function Description in/out Connector
mains, "N"
100 to 240 VAC, 50/60 Hz, 35 VA
input orange right
mains, "L" input left
Protective Ground
yellow-green wire,
to be connected to chassis grounding terminal inside Cabinet
The signal cable enters the cabinet through a water proof cable gland. The signal cable may be fed
through the Cabinet's hole together with the connector. It is held by a grounded cable clamp which
should have electrical contact to the cable shield. The different wires connect to the green PCB
connector, which is plugged into the green single row terminal block.
Connections:
1 Current output concentration 4- 20 mA output
2 4- 20 mA GND
3 Voltage output concentration 0 – 10 V output
4 0 – 10 V GND
5 Auto Zero input Set to Zero (+24 VDC, 8 mA) input
6 Zero GND
7 Error contact opening on any error output
8
10 Common for the following output contacts: output
9 Dryer Error (DH6)
3
opening on error output
11 not connected
12 Lamp Low contact opening on warning and error output
13 Low Limit Alarm contact opening or closing (selectable) output
14 High Limit Alarm contact opening or closing (selectable) output
15 Cuvette Dirty contact opening on warning and error output
16 Low Flow (LFW-2)
2
opening on warning output
The Off-Gas Cabinet features a sealed USB connector. All USB operations described for the stand-
ard version can also be performed with the Cabinet.
3
contact has no function, if option is not installed
