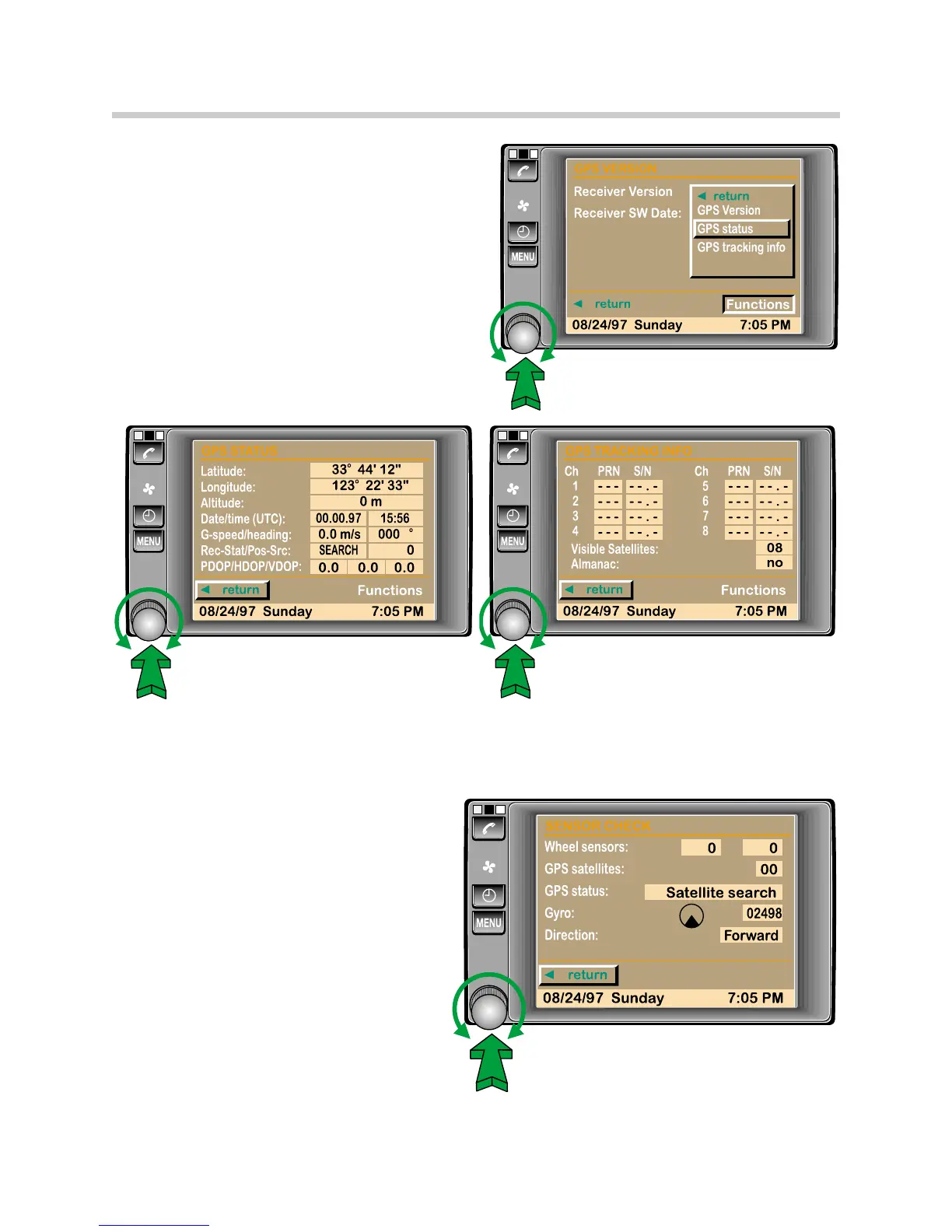

The sub-selection menu additionally
includes GPS Status and Tracking
choices.
GPS Status provides information on the
exact coordinates of the vehicle based
on the calculations of the GPS receiver
module.
GPS Tracking provides information about
the individual satellites currently sending
signals to the GPS receiver module.
The next selection available from the SERVICE MODE menu is Sensor check which provides:
Wheel speed input (only one wheel speed signal, displayed in the right side window),
Total number of GPS satellites
currently providing signals,
What mode the GPS receiver module
is currently in; (ie: Search)
The Gyro status provides the millivolt-
age value the Nav computer is utilizing
for the current vehicle position. This
area also includes an icon represent-
ing what direction the vehicle is head-
ing in.
The direction status relates to what gear the vehicle is currently in (forward or reverse).
61
On-Board Monitor and Navigation Systems
