User's Manual
Speaker Placement
The Front Speakers
You should closely follow the placement
recommendations of your speaker manufac-
turer, with the addition of the following points:
The left and right front speakers should
be positioned so that your TV is exactly
centered between them. This will help focus
your attention towards the screen.
For the best Holographic Image, the left
speaker should be set exactly the same
distance and angle away from your listening
position as the right speaker. It is recom-
mended that you use a tape measure to set
them up to be the same distance away, within
about half an inch tolerance.
If you have a smaller TV, the speakers
should be no more than two feet away from
the sides of the TV.
If possible, have the center, left and right
speakers at the same height (within two feet).
This will help give a smooth transition when
sound effects move from speaker to speaker.
Ideally, the speakers should be no closer
than two feet from the rear and side walls, in
order to reduce any reflections that might
upset the imaging. If your speakers are closer
than this, you can experiment by adding
sound deadening material such as drapes on
the walls to reduce any unwanted reflections.

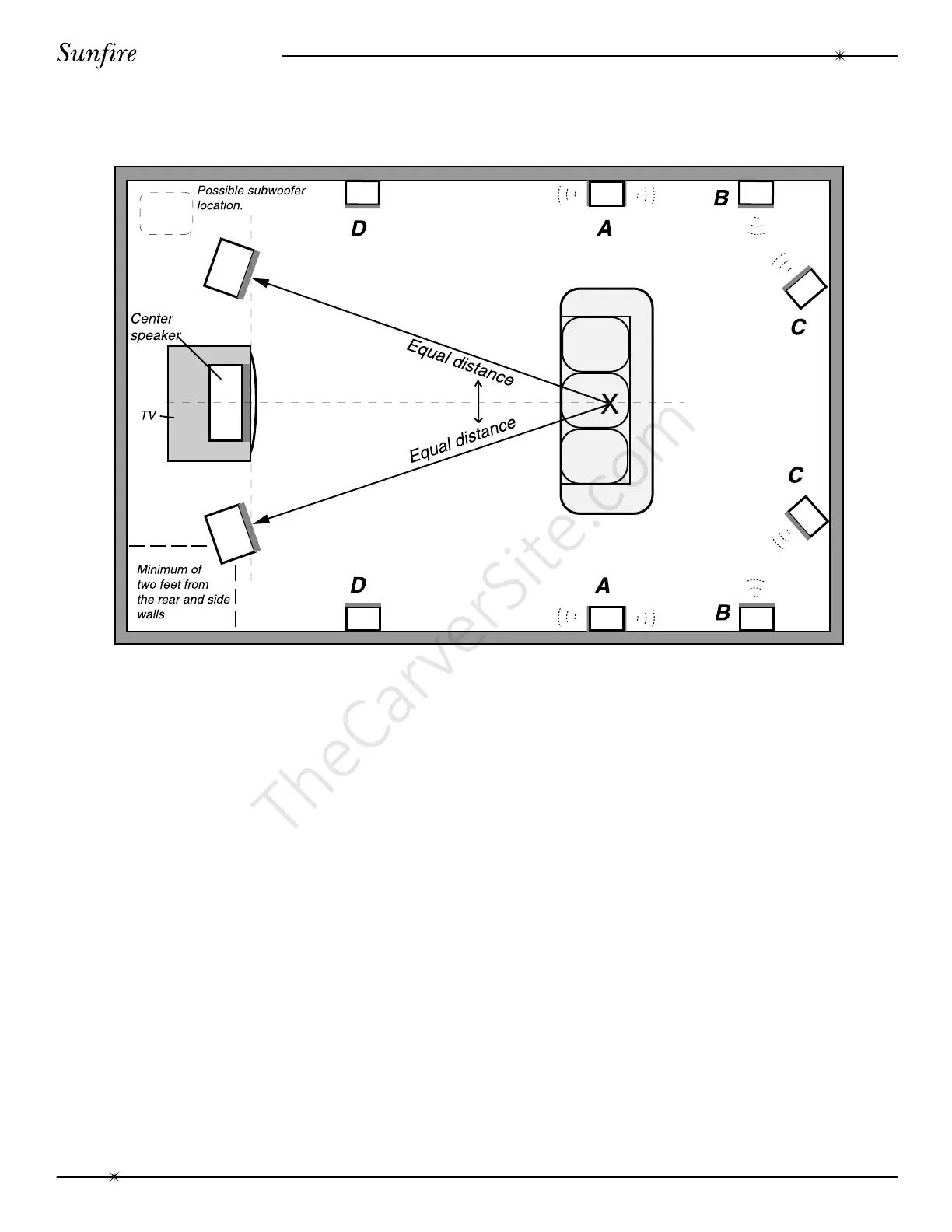

A, B and C are surround speaker options,
pair D are side speakers, see the next page.
Side speakers
