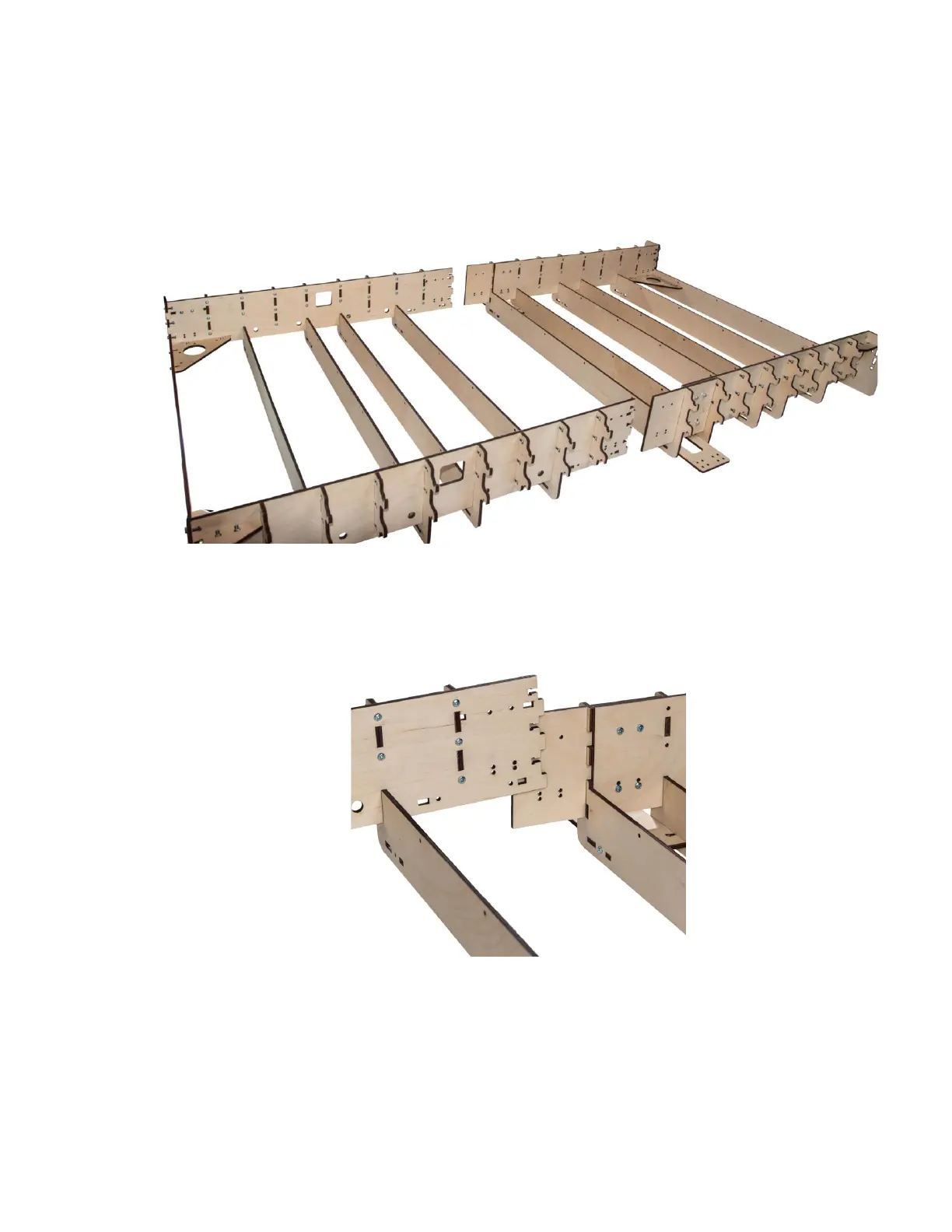

Step 12 Align the unused mounting holes of the Coupling Plate with the
holes in the Rear X Frame Assembly.
The ends of the Rear X Frame Assembly will fit between the
Coupling Plates. Secure each side with four M4 X 16 Screws and
Lock Nuts.
