Y and Z Carriage Assembly
Illustrated Step by Step Instructions
WARNING Prior to installing the Lower
Rails, adjust the Eccentric Spacers so that the
lower Bearing Assemblies are at their outboard
position.

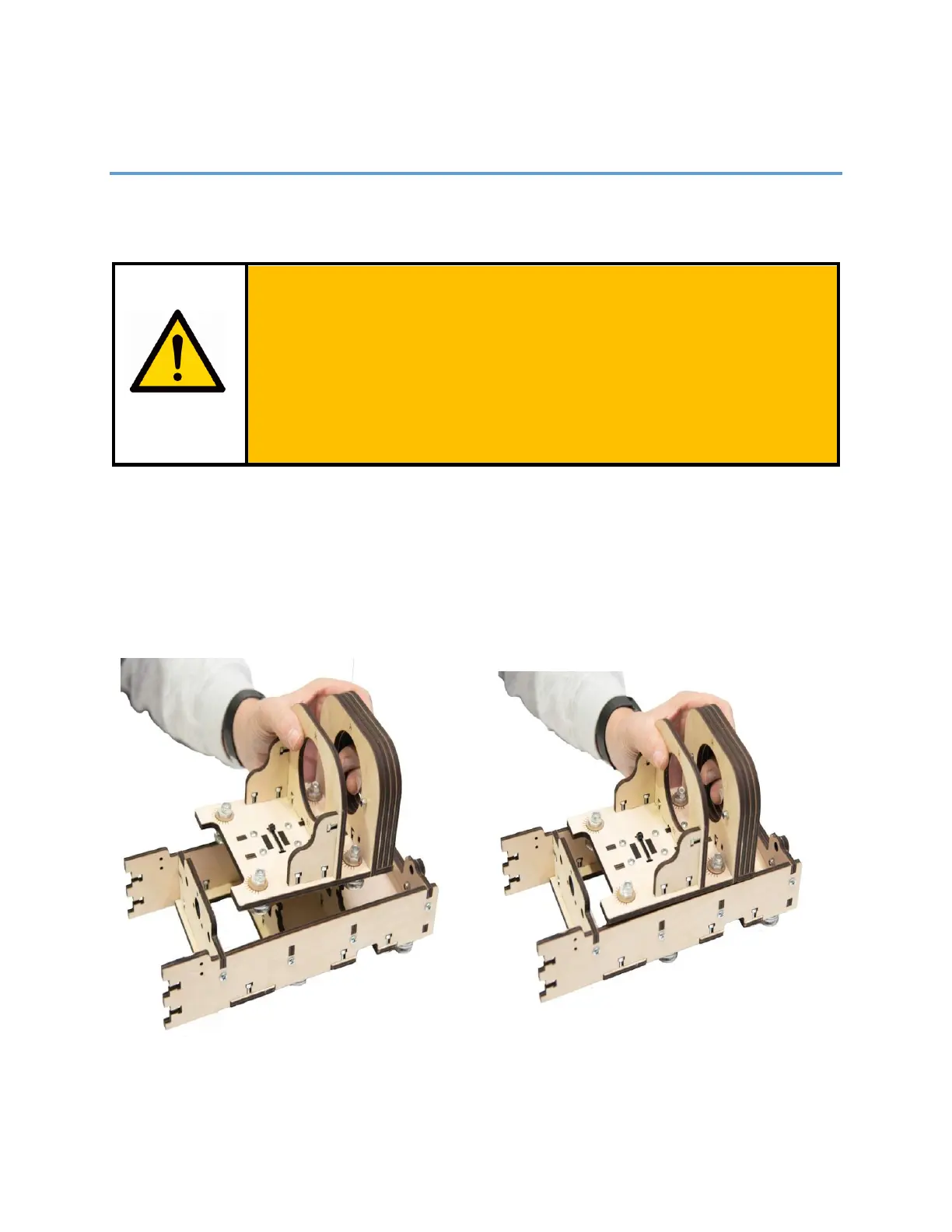

Step 1 Lay the Y Carriage Assembly with the Bearings facing down. Fit
Z Carriage Assembly into Y Carriage Assembly as shown.
