Illustrated Step by Step Instructions
Step 1 The X Frame consists of a Front and Rear Assembly. To build the
Front Assembly:

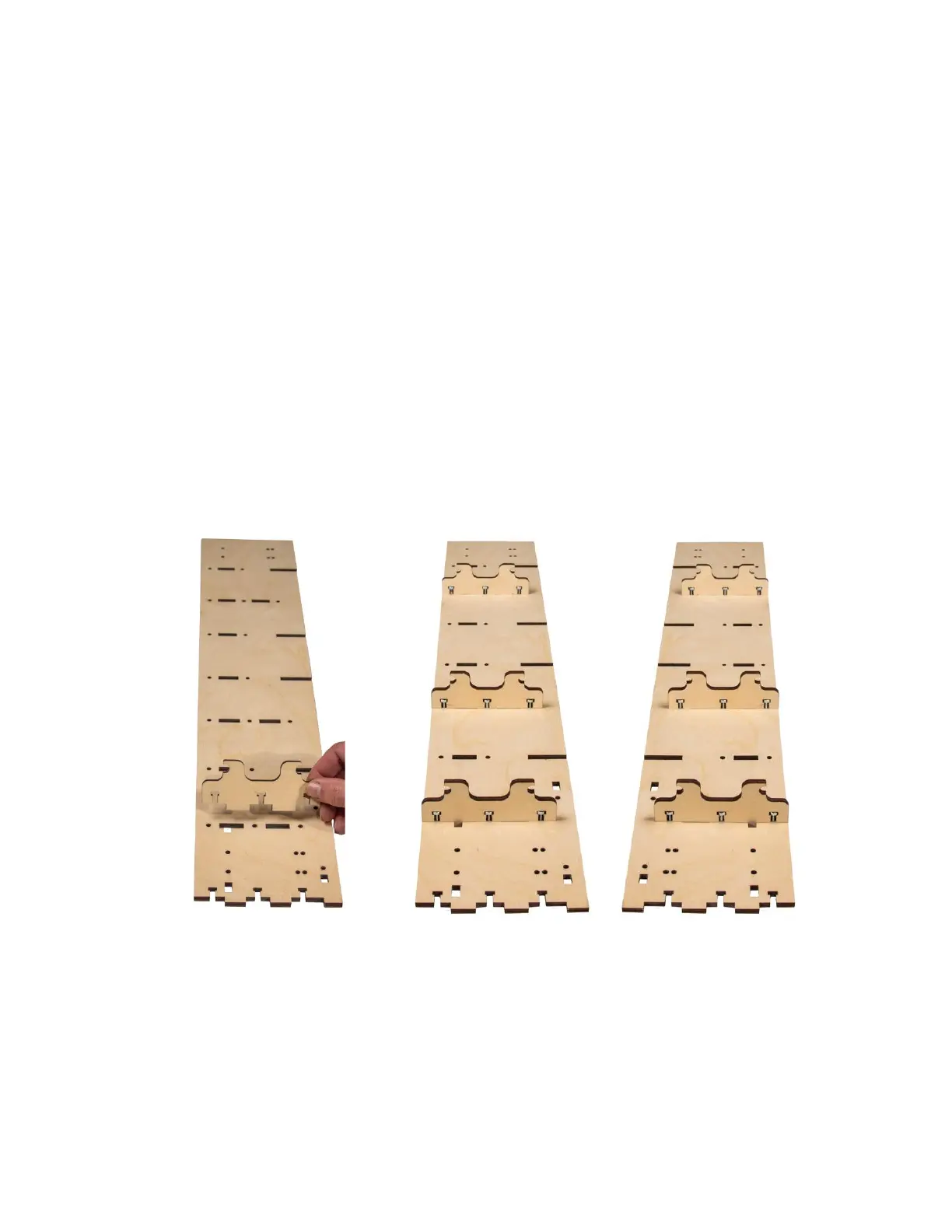

Align the tabs of the Rail Supports (X1) into the slots in the
Frame Side Support Front(EX5). Secure with three M4 x 16
Machine Screws and Nuts for each Rail Support as shown.
Repeat for both Frame Side Supports Front.
