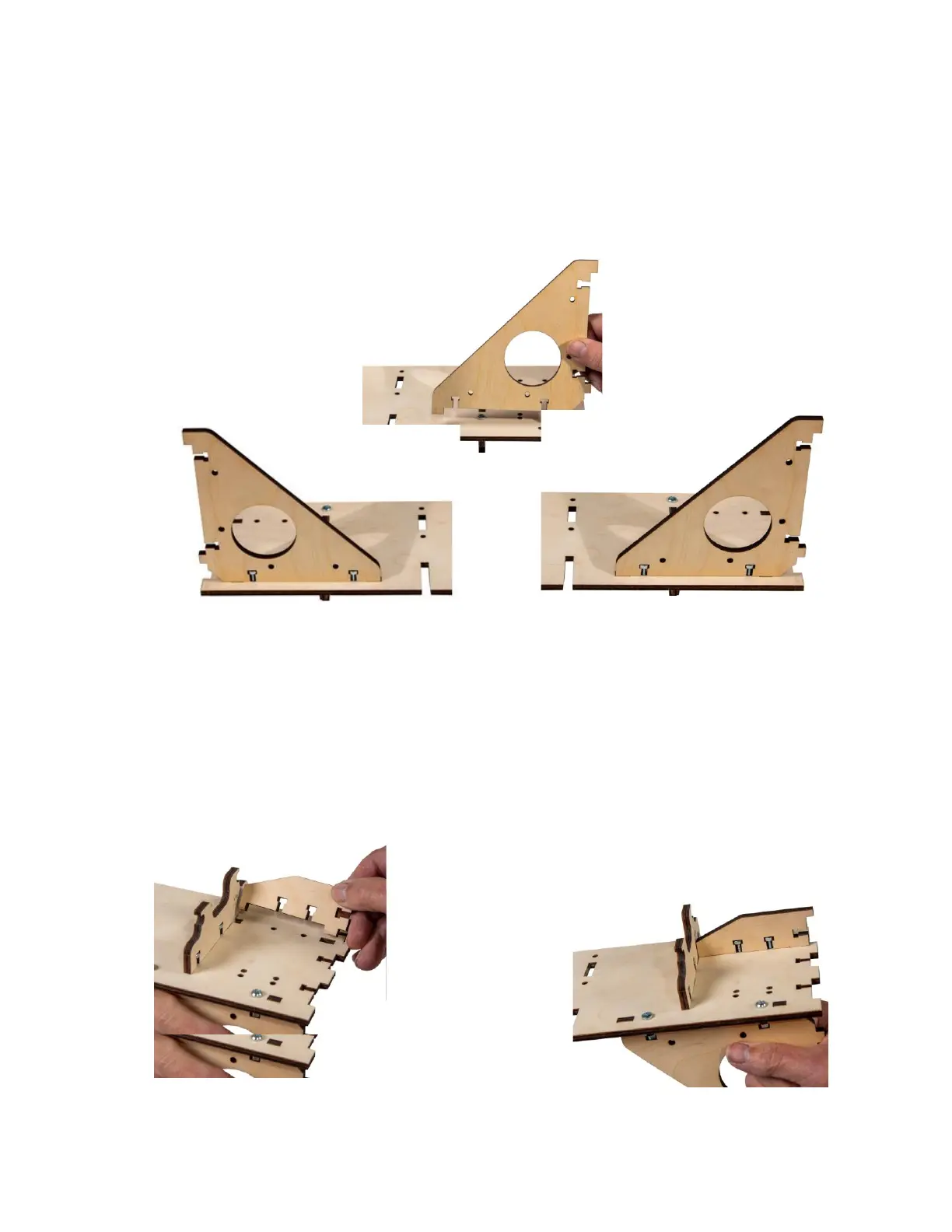

Step 2 Align the tabs of two Frame Corner Supports (previously
removed) into the lower slots of the Frame Side Assembly and
secure with two M4 x 16 Machine Screws and Nuts as shown.
Repeat to complete the second Frame Side Assembly.
Step 3 Align the tabs of the four Frame Corner Braces (X2) into upper
slots of the Side Assembly on the outside and secure with two
M4 x 16 Machine Screws and Nuts as shown Repeat on the
remaining Frame Side Assembly.
To Next Page
