BobsCNC Evolution Series - Front View (Right Hand Side) Completed

59

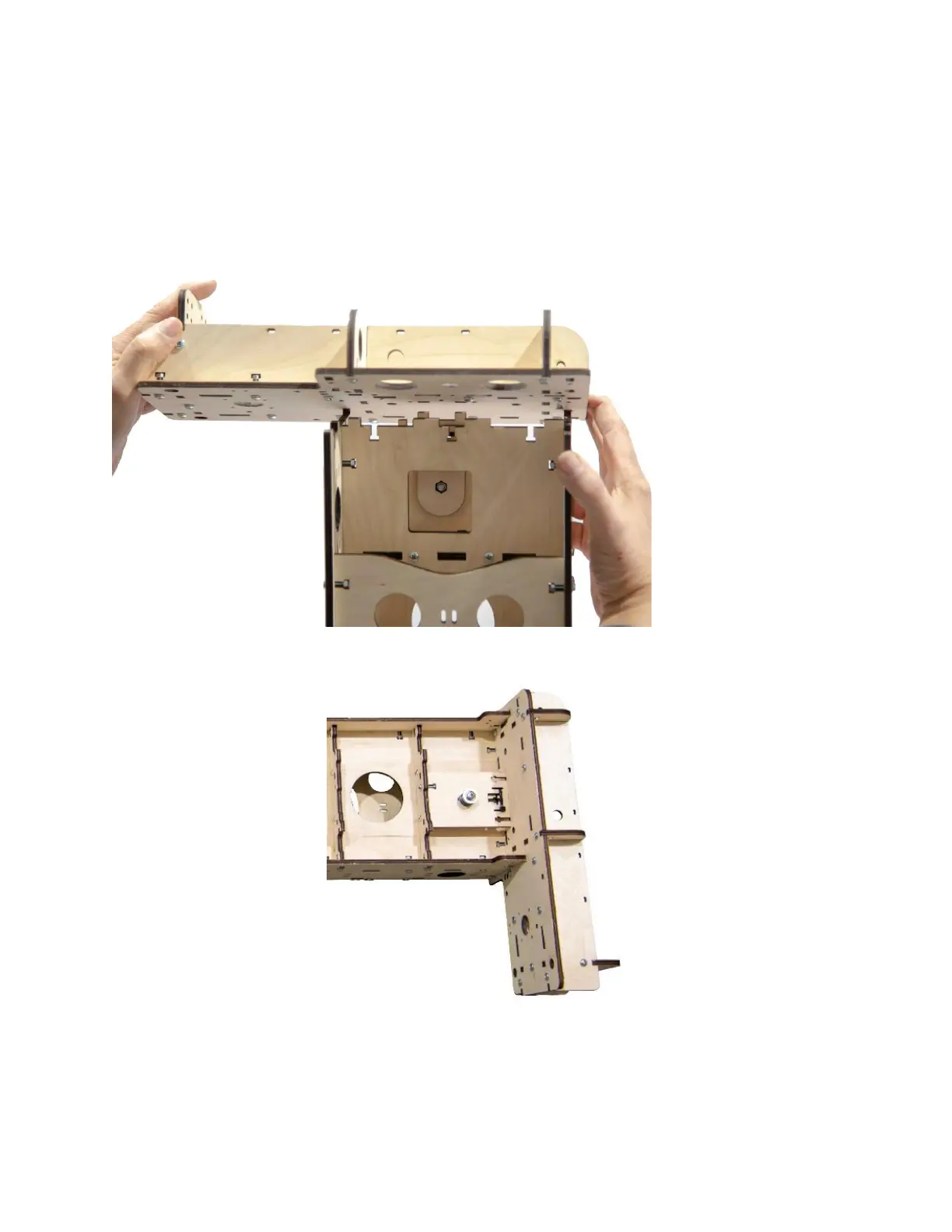

Step 17 Align and insert the tabs of the Gantry Frame Assembly into the
slots of the Right Gantry Side Assembly and secure with seven
M4 x 16 Machine Screws and Nuts. [NOTE: The Stepper Motor
Mount will be secured in a later step]. (Photo is taken from
the back of the Assembly to illustrate tabs and slots).
Front View (Right Hand Side) Completed
