BobsCNC Evolution Series - Page 59

58

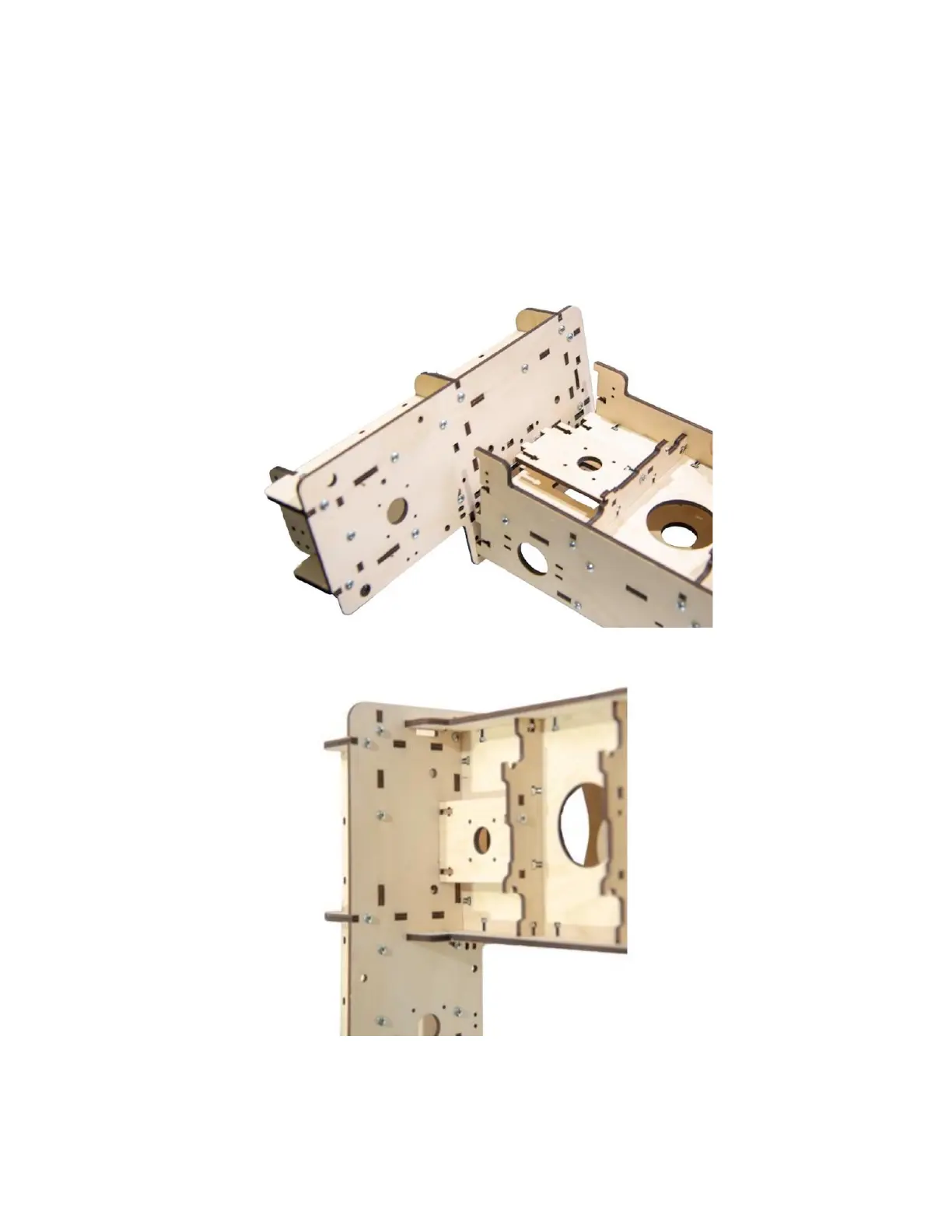

Step 16 Align and insert the tabs of the Gantry Frame Assembly into the
slots of the left Gantry Side Assembly and secure with seven M4
x 16 Machine Screws and Nuts. [NOTE: The Stepper Motor
Mount will be secured in a later step].
Left Front View Completed
Left Hand Side
