BobsCNC Evolution Series - Page 58

57

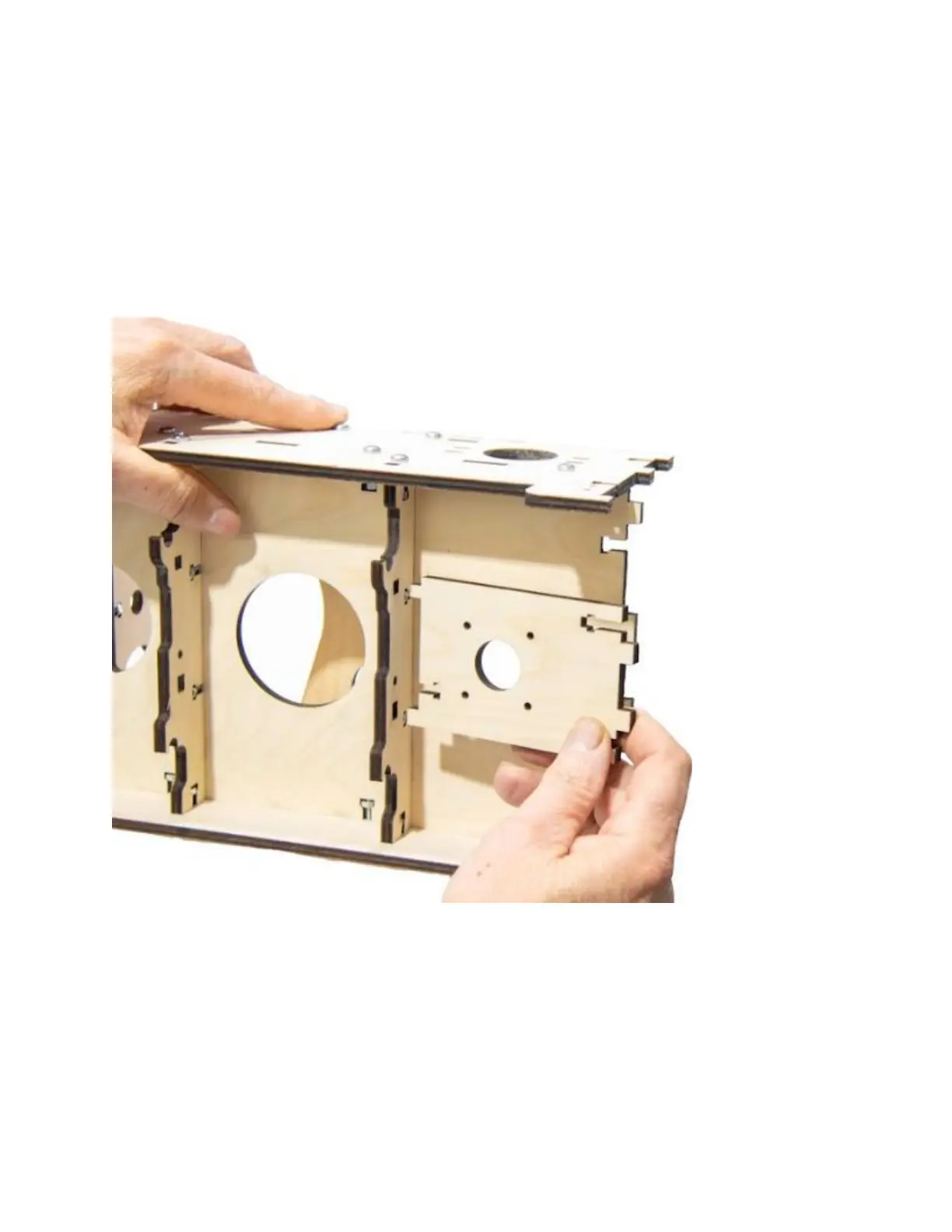

Step 15 Align and insert the tabs of the Y Stepper Motor Mount (G11)
into the slots of Gantry Frame Assembly and secure with one
M4 x 16 Machine Screw and Nut as shown. In the photo below,
the Bearing Adjustment Access Holes are oriented to the
bottom to simplify installation.
BOTTOM
TOP
Left Hand Side
