BobsCNC Evolution Series - Page 57

56

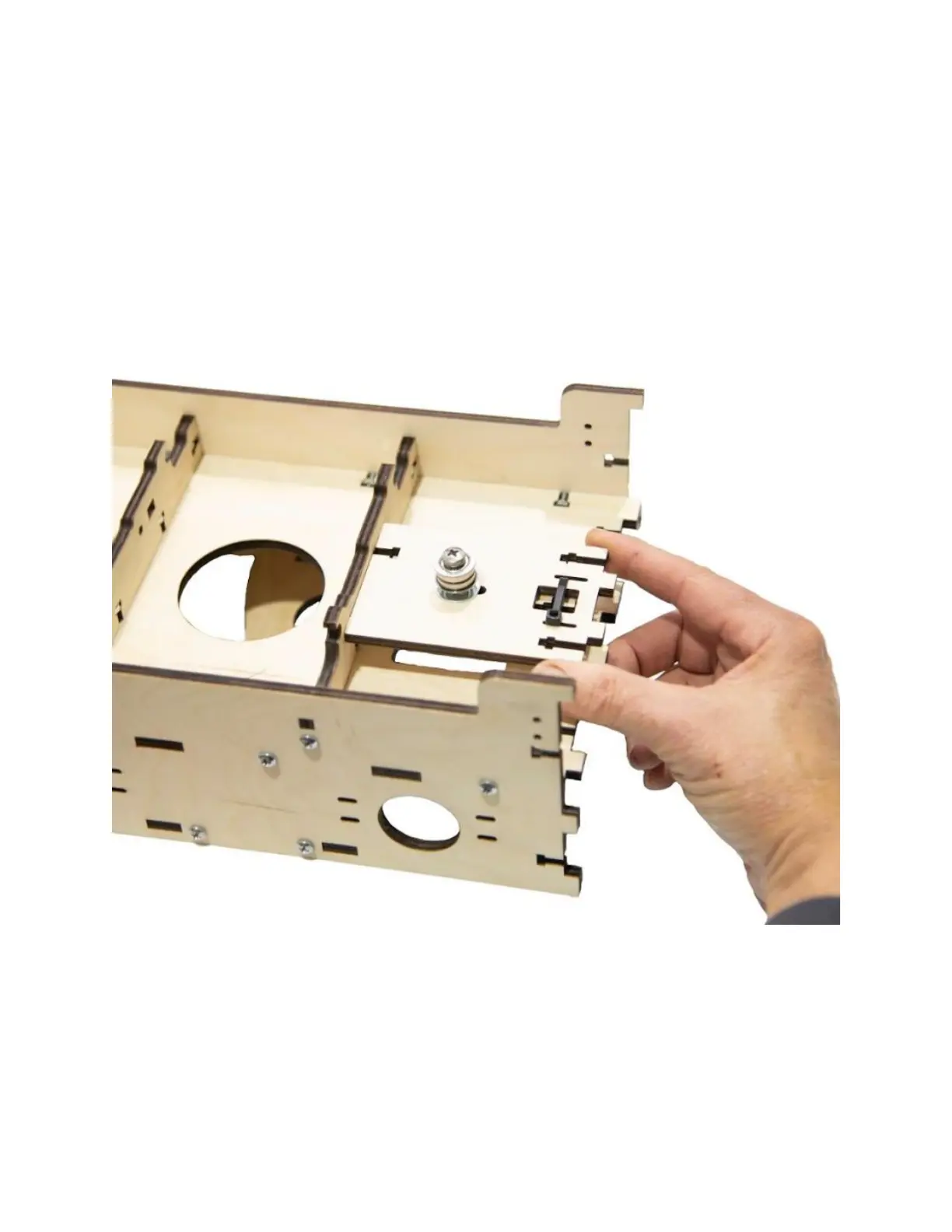

Step 14 Align the Idler Adjustment Assembly into the slots of the Gantry
Frame Assembly as shown. Secure the Adjustment Assembly in
place with one M4 Machine Screw and Nut as shown. In the
photo below, the Bearing Adjustment Access Holes are oriented
to the top to simplify installation.
TOP
BOTTOM
Right Hand Side
