55

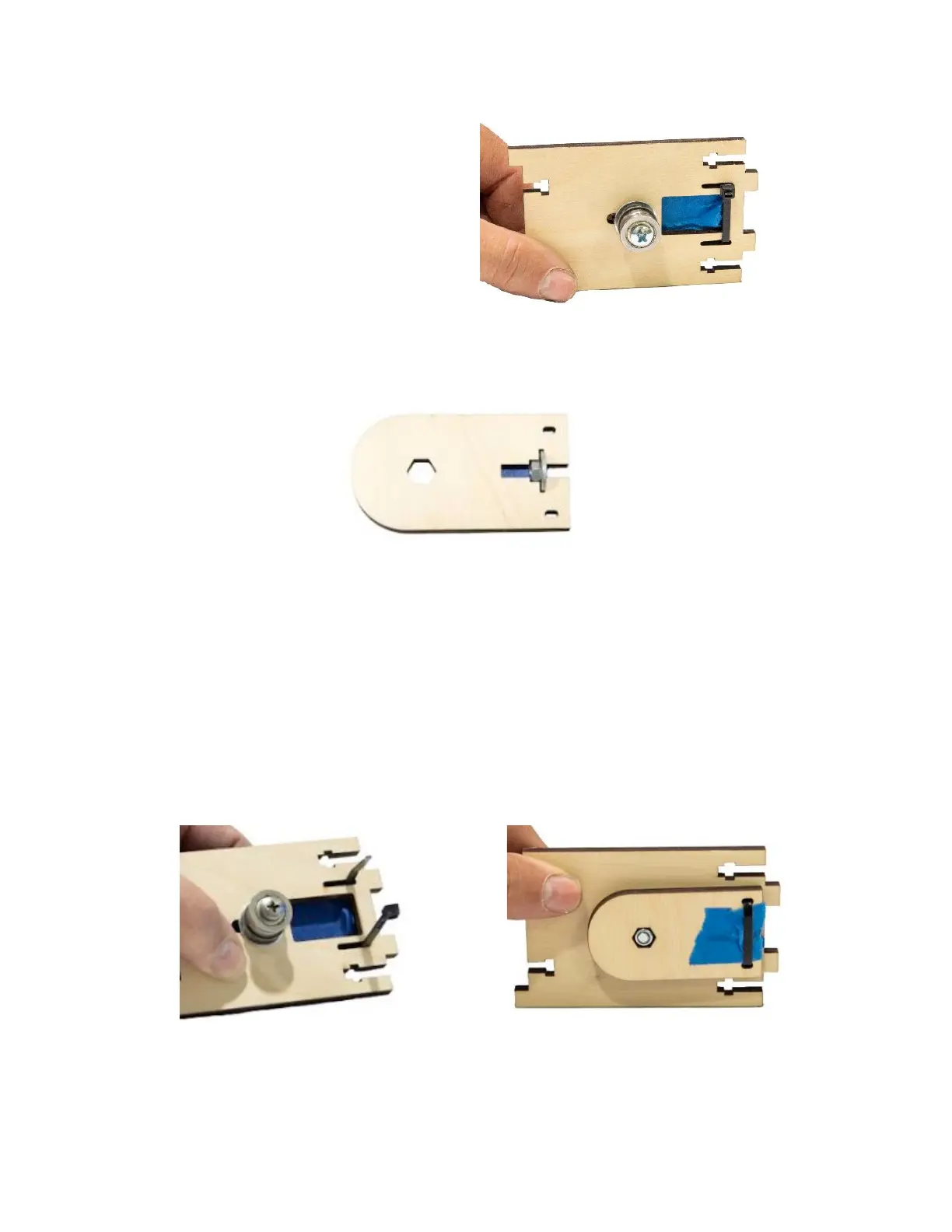

13e Place a 1 ½” strip
of painter’s tape
on one side of the
Y Belt Adjuster.
Insert a M4 Nut
and a Bearing
Retainer Washer in
the appropriate slots and cover with another length
of tape.
13f Insert the M5 Lock Nut into the hex shaped hole in
the Y Belt Adjuster (G13). Secure in place by
threading an 8 inch Zip Tie through the slots as
shown. NOTE: The Idler Support Assembly should
slide up and down the Y Belt Adjuster while keeping
the Lock Nut secure.
