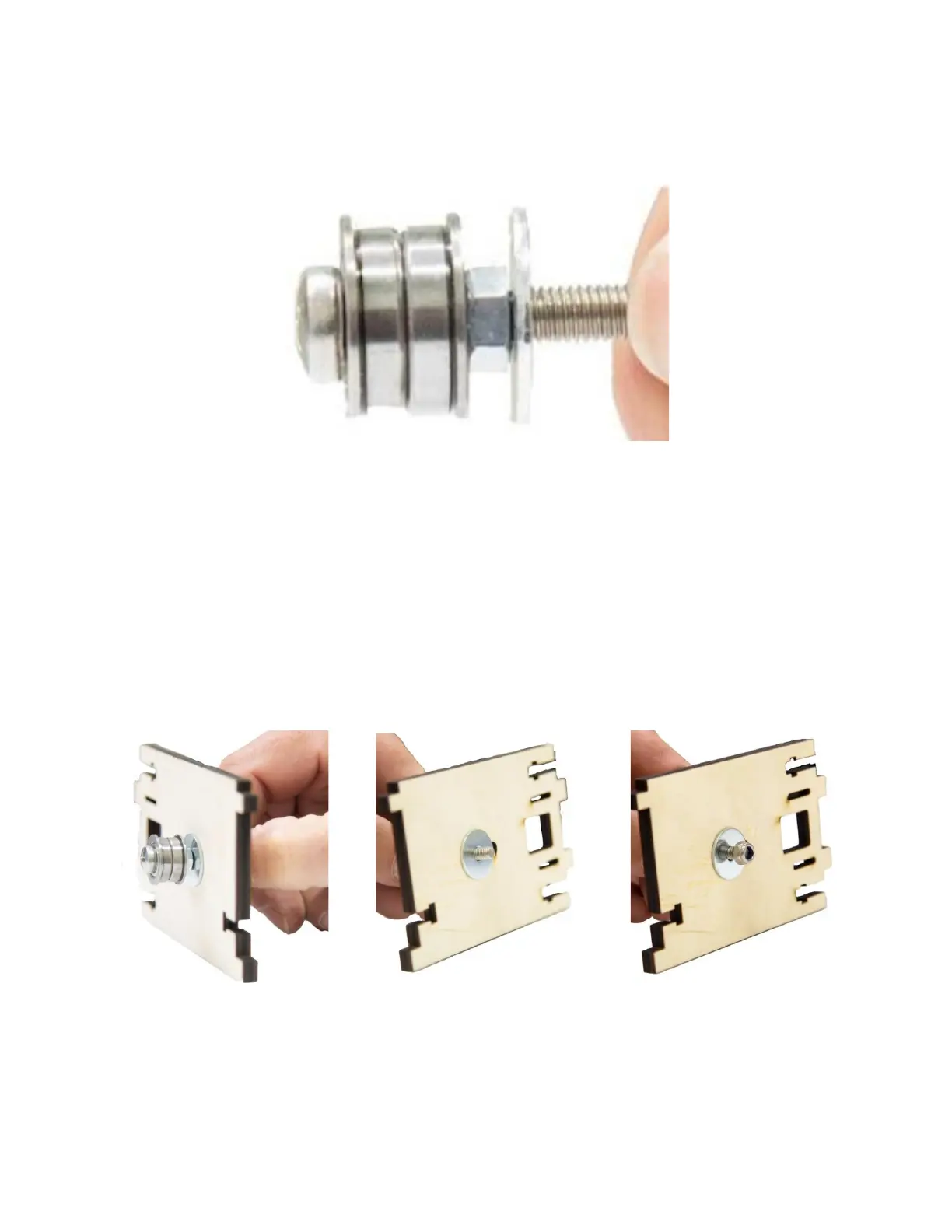

13c Slide an Idler Fender Washer onto the Machine Screw
against the M5 Nut.
13d Insert the Bearing assembly through Y Belt Idler Mount
(G12) and secure with an Idler Fender Washer and M5
Lock Nut as shown.
