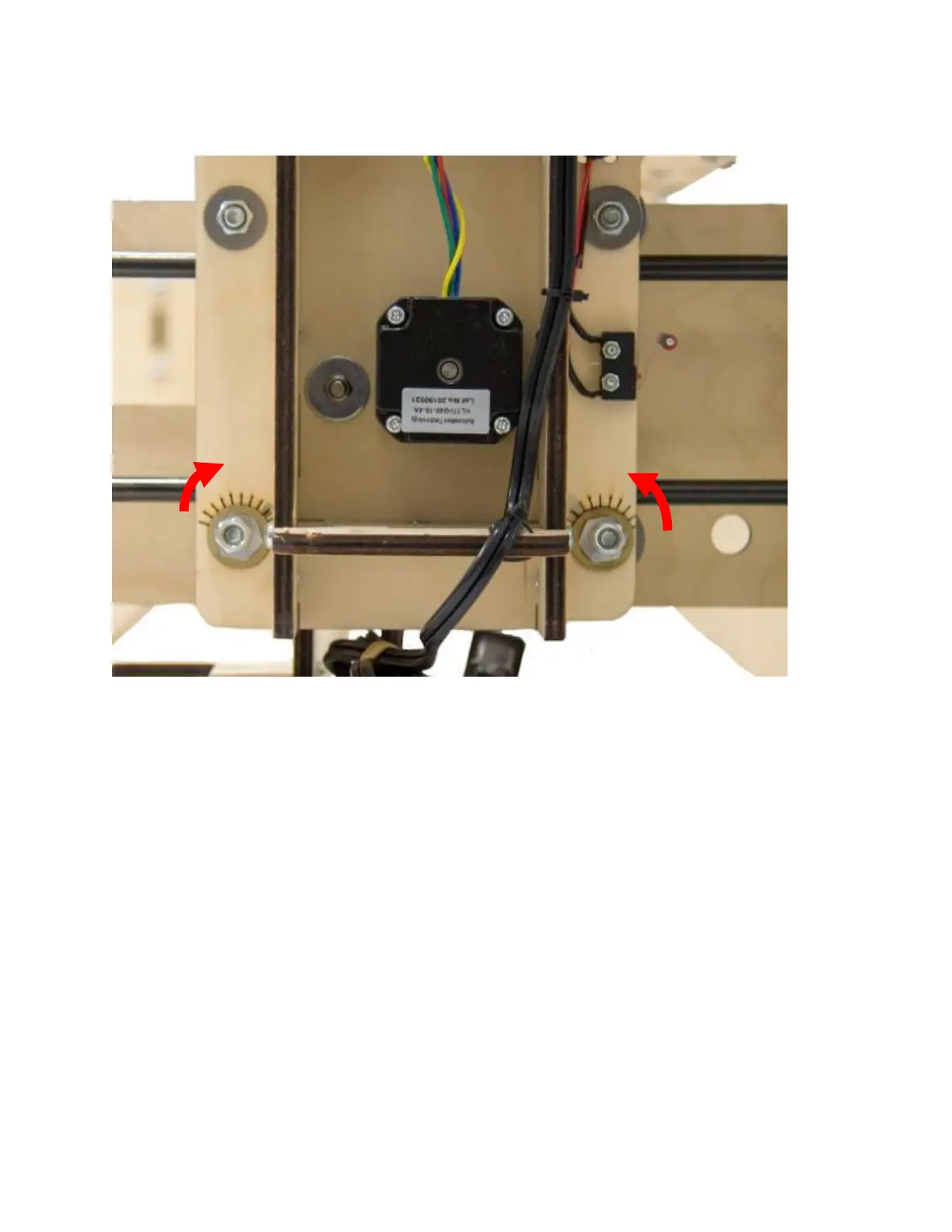

Step 5 Adjusting the Eccentric Spacers
NOTE: To raise the SG20U Bearing against the Rail on the Left Side, rotate
the Eccentric Adjustment Spacer clockwise. To raise the Bearing on the
Right Side, rotate the Eccentric Adjustment Spacer counterclockwise.
Clockwise
Counterclockwise
