113

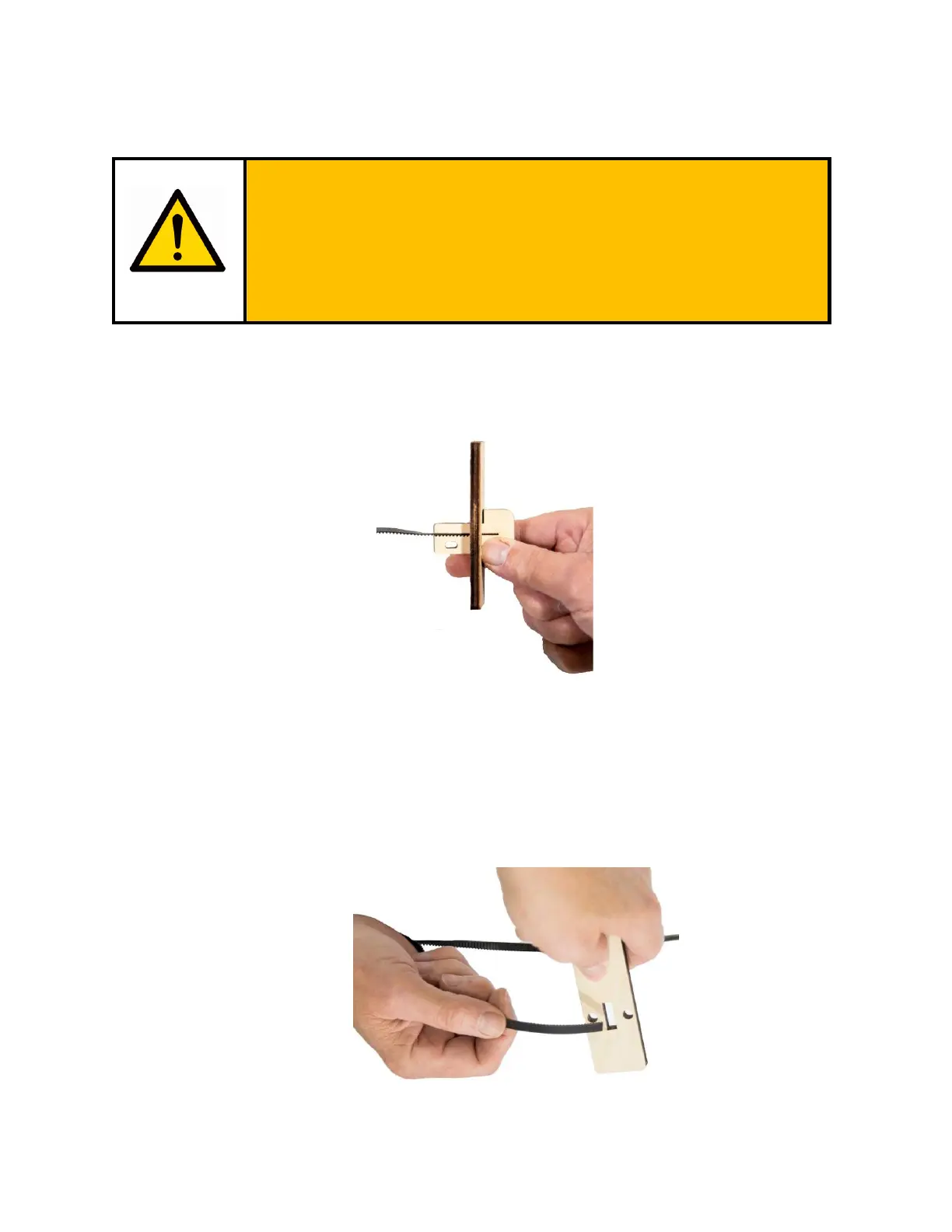

Step 6 Installing the X GT2 Belts. (Photos of right-side installation).
6a Cut two of the GT2 Belts to a length of 60 7/8 inches.
6b Insert one end of the Belt into the Short Belt Retainer
(X9).
6c Next, thread the free end of the GT2 Belt through the
Rail Stop (X3). NOTE: In the photo, the Rail Stop has
been rotated so that the slot is oriented toward the
bottom of the Rail Stop.
WARNING Belt routing is important.
Ensure proper placement as illustrated in X1
Side View (page 129) and X2 Side View
(page130)
